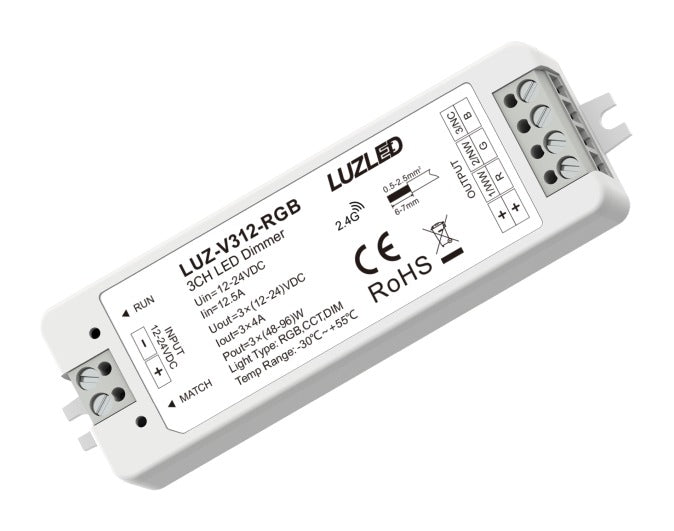

RGB and Tunable White LED Controller, RF, 3 x 4A

RGB and Tunable White LED Controller, RF, 3 x 4A

RF controller for constant voltage LED strip that sets the colour of RGB strip, the white of tunable white strip or the level of single colour strip.

CodeLUZ-V312-RGB
Spec sheet PDF
Control RF remote RF 2.4 GHz, range 30 m
Input 12 to 24V DCFor 12 or 24V strip
Output 3 x 4 A144 W at 12V, 288 W at 24V
Dimming 4096 levels Logarithmic, PWM 1 to 8 kHz

Specifications

Electrical

Input
12-24V DC, 12.5A
Output
3 channels, constant voltage, 4A each (3A at 4 or 8kHz PWM); 144W at 12V, 288W at 24V
Control
RF 2.4GHz
Dimming
4096 levels, logarithmic; PWM 1, 2, 4 or 8kHz
Protections
Reverse polarity, short circuit
Range
30 m

Build and installation

Size
97 x 33 x 18 mm
Ambient temperature
-30 to 55 °C

About this product

It is wired with screw terminals between a constant voltage power supply and the strip, and is matched to the RF remotes and wall panels of this range with its match key or by switching the power. On RGB strip it mixes colours and runs built in colour effects, on tunable white strip it moves between warm and cool white, and on single colour strip it dims smoothly. The PWM frequency can be raised where the lit area is filmed.

Features

  • Passes the remote's signal on to other controllers in range and keeps several controllers in step
  • Built in dynamic colour modes, with jump or gradual changes
  • Selectable fade time when switching on and off
  • Several remotes can be matched to one controller

Applications

  • 12V or 24V constant voltage RGB, tunable white or single colour strip
  • The RF 2.4GHz remotes and wall panels of this range
