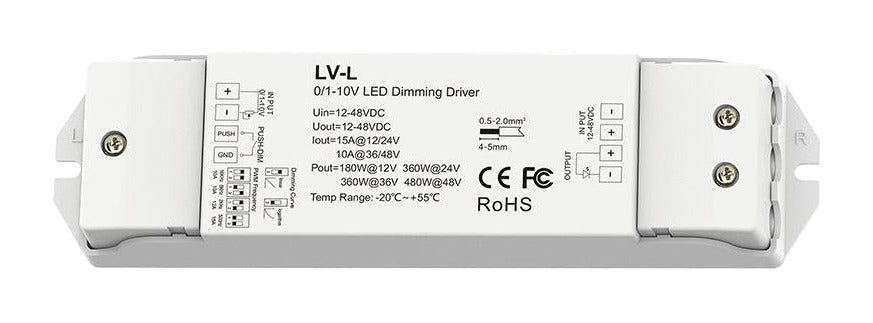

0/1-10V and Push Dim LED Controller, 15A

0/1-10V and Push Dim LED Controller, 15A

Single channel dimmer for constant voltage LED strip, controlled by a 0/1-10V signal or a push switch.

CodeLUZ-LV-L
Spec sheet PDF
Control 0/1-10V and push switch Analogue control from a 0/1-10V dimmer
Input 12 to 48V DCFor 12, 24, 36 or 48V strip
Output 1 x 15 A10 A at 36 and 48V; up to 480 W
Protection IP20 For dry indoor rooms.
Dimming 4096 levels Linear or logarithmic; PWM 500 Hz to 16 kHz

Specifications

Electrical

Input
12-48V DC
Output
1 channel, 15A at 12/24V, 10A at 36/48V; 180 / 360 / 360 / 480W
Control
0/1-10V and push switch
Dimming
4096 levels; PWM 500Hz, 2, 8 or 16kHz; linear or logarithmic

Build and installation

Size
178 x 50 x 38 mm
IP rating
IP20
Ambient temperature
-20 to 55 °C
Standards
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN 61347-2-13

About this product

It sits between the power supply and the strip and dims the strip from a building control signal or a wall push switch; the dimming curve and frequency can be set to suit the room and any cameras filming it.

Applications

  • 12V to 48V constant voltage LED strip
  • Building controls with 0/1-10V dimming
  • Momentary wall push switches
