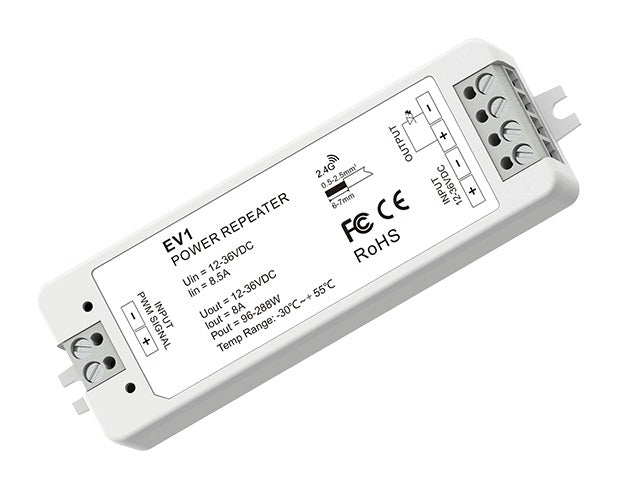

Power Repeater, 8A
Power repeater that takes the signal of a controller and drives more LED strip.
CodeLUZ-PR18-R
Spec sheet PDF
Control
PWM from the controller
Repeats one controller channel
Input
5 to 36V DCFor 5, 12, 24 or 36V strip
Output
1 x 8 A40 to 288 W, by supply voltage
Protection
IP20
For dry indoor rooms.
Specifications
Electrical
- Input
- 5-36V DC
- Output
- 1 channel, 8A; 40 / 96 / 192 / 288W at 5 / 12 / 24 / 36V
- Control
- PWM from the controller
- Protections
- Reverse polarity, short circuit
Build and installation
- Size
- 97 x 33 x 18 mm
- IP rating
- IP20
- Ambient temperature
- -30 to 55 °C
- Standards
- EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 61347-1, EN 61347-2-13
About this product
It takes the dimming signal from a controller and drives another run of strip with it, so long runs dim together beyond what one controller can power.
Applications
- Long LED strip runs beyond one controller's current
- Controllers of this range
