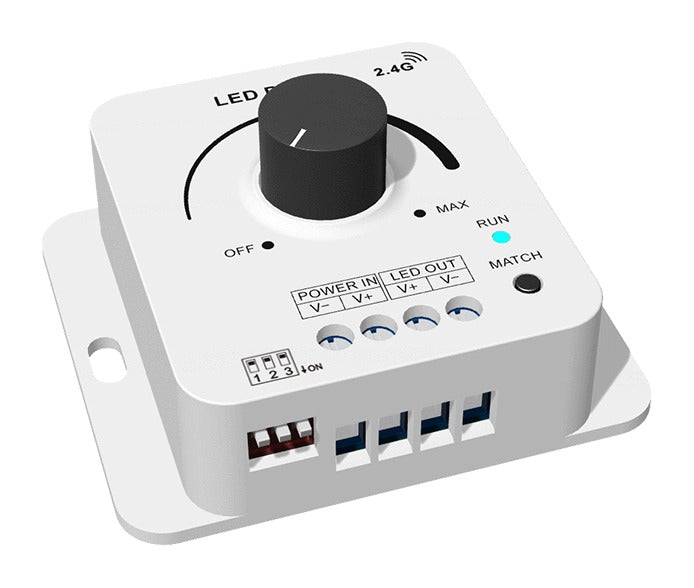

Rotary LED Dimmer, 8A
Compact rotary dimmer for one channel of constant voltage LED strip, also controlled by an RF remote.
CodeLUZ-RK18-DM
Spec sheet PDF
Control
Rotary knob and RF remote
RF 2.4 GHz, range 30 m
Input
12 to 48V DCFor 12, 24, 36 or 48V strip
Output
1 x 8 A6 A at 36 and 48V; up to 288 W
Protection
IP20
For dry indoor rooms.
Dimming
256 levels
Linear or logarithmic; PWM 500 Hz to 16 kHz
Specifications
Electrical
- Input
- 12-48V DC
- Output
- 1 channel, 8A at 12-24V, 6A at 36-48V; 96 / 192 / 216 / 288W
- Control
- Rotary knob and RF 2.4GHz remote
- Dimming
- 256 levels; PWM 500Hz, 2, 8 or 16kHz; linear or logarithmic
- Range
- 30 m
Build and installation
- Size
- 66 x 59 x 31.5 mm
- IP rating
- IP20
- Ambient temperature
- -20 to 55 °C
About this product
A compact rotary knob dims one channel of strip, and an RF remote can control it too.
Applications
- 12V to 48V constant voltage LED strip
- The RF 2.4GHz controllers and dimmers of this range
