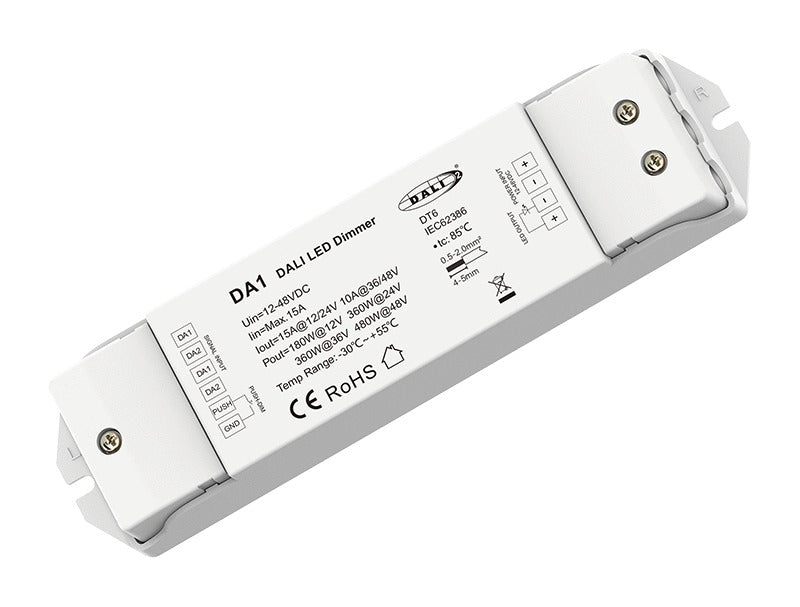

DALI Single Colour LED Dimmer, 15A
DALI dimmer for one channel of constant voltage LED strip, with a push switch input.
CodeLUZ-DALI115-DM
Spec sheet PDF
Control
DALI and push switch
DALI device type 6, DALI-2
Input
12 to 48V DCFor 12, 24, 36 or 48V strip
Output
1 x 15 A10 A at 36 and 48V; up to 480 W
Dimming
PWM dimming
2 kHz
Specifications
Electrical
- Input
- 12-48V DC
- Output
- 1 channel, 15A at 12/24V, 10A at 36/48V; 180 / 360 / 360 / 480W
- Control
- DALI (DT6) and push switch
- Dimming
- PWM 2kHz
Build and installation
- Size
- 178 x 50 x 38 mm
- Ambient temperature
- -30 to 55 °C
- Standards
- CE, DALI-2
About this product
It connects one channel of constant voltage strip to a DALI lighting control system, so the strip dims with the rest of the building's lights; a push switch can also control it on site.
Applications
- DALI lighting control systems
- 12V to 48V constant voltage LED strip
