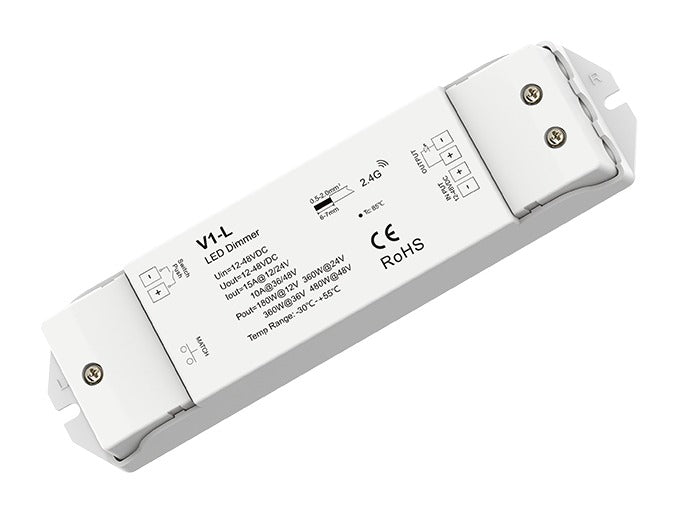

Single Colour LED Controller, RF and Push Dim, 15A
Controller for one channel of constant voltage LED strip, switched and dimmed by an RF remote or a push switch.
CodeLUZ-L115-DM
Spec sheet PDF
Control
RF remote and push switch
RF 2.4 GHz, range 30 m
Input
12 to 48V DCFor 12, 24, 36 or 48V strip
Output
1 x 15 A10 A at 36 and 48V; up to 480 W
Protection
IP20
For dry indoor rooms.
Dimming
PWM dimming
500 Hz
Specifications
Electrical
- Input
- 12-48V DC
- Output
- 1 channel, 15A at 12/24V, 10A at 36/48V; 180 / 360 / 360 / 480W
- Control
- RF 2.4GHz remote and push switch
- Dimming
- PWM 500Hz
- Range
- 30 m
Build and installation
- Size
- 178 x 50 x 38 mm
- IP rating
- IP20
- Ambient temperature
- -30 to 55 °C
- Standards
- CE, RED
About this product
It switches and dims one channel of strip from an RF remote or a wall push switch, for long runs and high loads.
Applications
- 12V to 48V constant voltage LED strip
- The RF 2.4GHz controllers and dimmers of this range
- Momentary wall push switches
