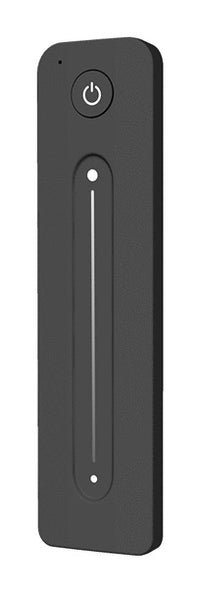

One Key Remote
LUZ-RC12-DM
- RF 2.4 GHz

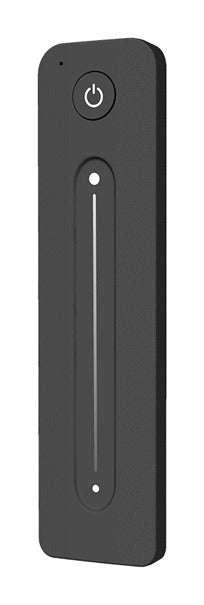

Touch Slide Remote, 1 Zone
Battery remote with a touch slider to switch and dim one zone of RF controllers.
CodeLUZ-RC11-DM
Spec sheet PDF
Control
RF remote
1 zone, range 30 m
Battery
CR2032About 1 year standby
Specifications
Electrical
- Control
- RF 2.4GHz
- Range
- 30 m
Build and installation
- Size
- 139 x 40 x 11 mm
- Ambient temperature
- -30 to 55 °C
- Mounting
- Magnet, screws or adhesive
- Battery
- CR2032, about 1 year standby
- Standards
- ETSI EN 301 489-1, ETSI EN 301 489-17, ETSI EN 300 328
About this product
A slim remote with a touch slider that switches and dims one zone of RF controllers; it can sit on a wall like a switch without any wiring.
Applications
- The RF 2.4GHz controllers and dimmers of this range
More in Controllers and remotes
See all
Rotary LED Dimmer, 8A
LUZ-RK18-DM
- Rotary and RF
- 12 to 48V DC
- 8 A
2 versionsGlass Touch Panel Remote, RGBW, 4 Zones
LUZ-RL4-B
- RF 2.4 GHz
- 4 zones
AC Triac Dimmer, RF and Push, 150 to 360W
LUZ-S150-DM
- RF and push
- 100 to 240V AC
- 150 to 360 W
Single Colour LED Controller, RF, 0/1-10V and Push Dim, 20A
LUZ-T120-DM
- RF, 0/1-10V, push
- 12 to 48V DC
- 20 A

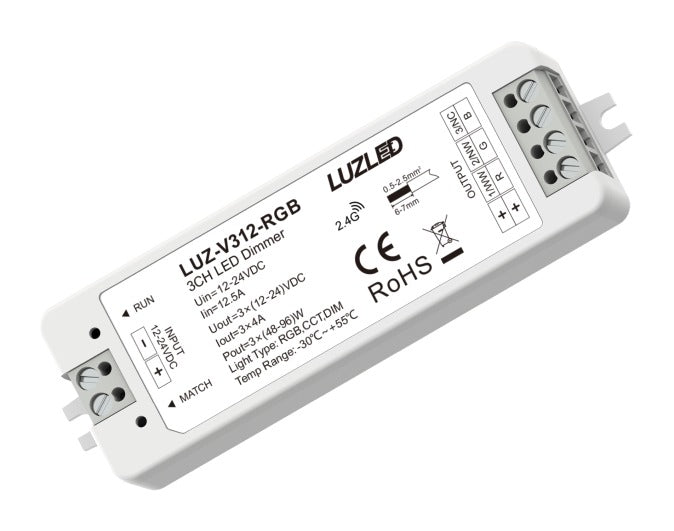

RGB and Tunable White LED Controller, RF, 3 x 4A
LUZ-V312-RGB
- RF 2.4 GHz
- 12 to 24V DC
- 3 x 4 A
WiFi and RF DMX512 Master, 1 to 5 Channels
LUZ-WT-DMX-S
- WiFi, RF and push
- 12 to 36V DC
- 1 to 5 channels

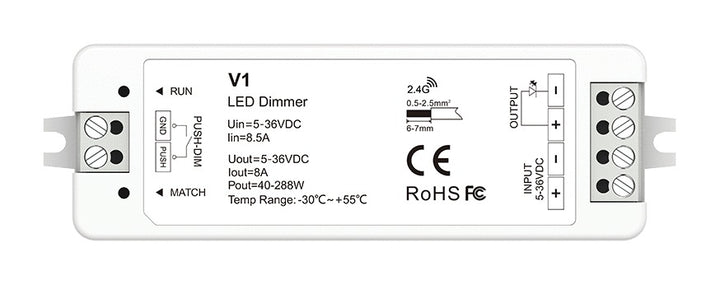

Single Colour LED Controller, RF and Push Dim
