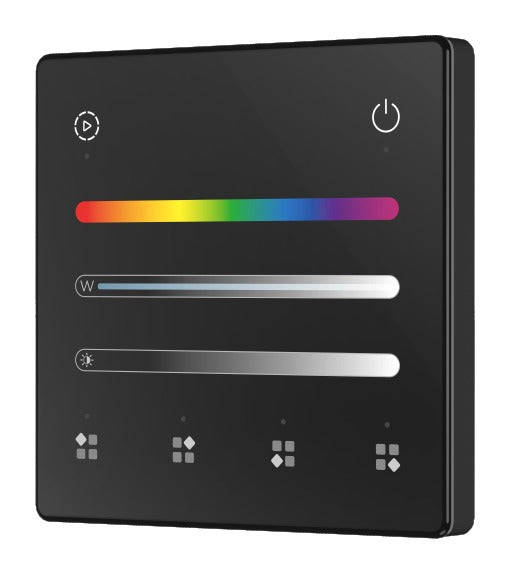

Shown: BlackGlass Touch Panel Remote, RGBW, 4 Zones
Battery powered glass wall panel that sets the colour, white and brightness of RGB and RGBW strip through RF controllers.
CodeLUZ-RL4-B
Spec sheet PDF
Finish Black
Control
RF remote
4 zones, range 30 m
Protection
IP20
For dry indoor rooms.
Battery
CR2032About 1 year standby
Specifications
Electrical
- Control
- RF 2.4GHz
- Range
- 30 m
Build and installation
- Size
- 86 x 86 x 10 mm
- Material
- Glass panel
- IP rating
- IP20
- Ambient temperature
- -30 to 55 °C
- Mounting
- Magnet, screws or adhesive
- Battery
- CR2032, about 1 year standby
About this product
It needs no wiring: the panel fits on a wall with screws, adhesive or its magnet and is matched to one or more RF controllers of this range, such as the RGB controller. Touch sliders set the colour, the white level or saturation and the brightness, and the keys along the bottom recall saved scenes or, set as a zone remote, switch separate zones. It comes in black or white glass.
Features
- Set up as an RGB, RGB and white, or RGBW remote
- Dynamic colour modes with adjustable speed
- Scene keys can be locked
- Touch keys with LED indicator
Applications
- The RF 2.4GHz controllers of this range
- RGB and RGBW LED strip
