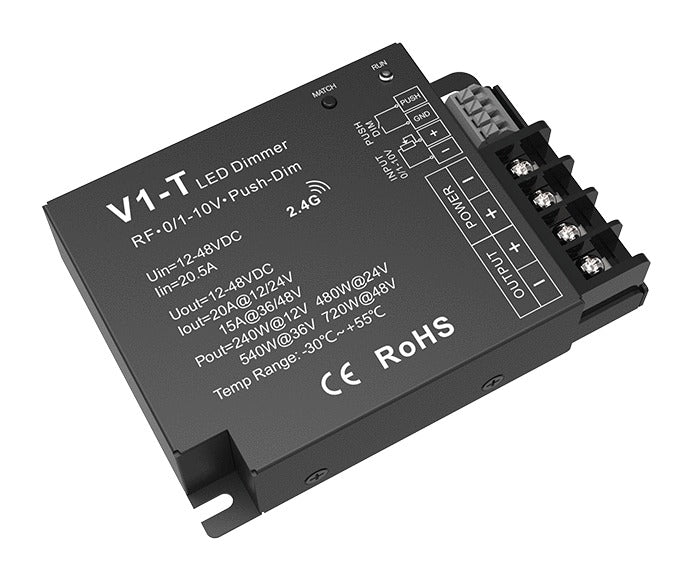

Single Colour LED Controller, RF, 0/1-10V and Push Dim, 20A

Single Colour LED Controller, RF, 0/1-10V and Push Dim, 20A

Controller for one channel of constant voltage LED strip, dimmed by an RF remote, a 0/1-10V signal or a push switch.

CodeLUZ-T120-DM
Spec sheet PDF
Control RF, 0/1-10V and push switch RF 2.4 GHz, range 15 m
Input 12 to 48V DCFor 12, 24, 36 or 48V strip
Output 1 x 20 A15 A at 36 and 48V; up to 720 W
Protection IP20 For dry indoor rooms.
Dimming 4096 levels Logarithmic, PWM 2 kHz

Specifications

Electrical

Input
12-48V DC
Output
1 channel, 20A at 12/24V, 15A at 36/48V; 240 / 480 / 540 / 720W
Control
RF 2.4GHz remote, 0/1-10V and push switch
Dimming
4096 levels, logarithmic, PWM 2kHz
Protections
Reverse polarity, over heat, over load, short circuit
Range
15 m

Build and installation

Size
107 x 75 x 24.5 mm
IP rating
IP20
Ambient temperature
-30 to 55 °C
Standards
CE, EMC, RED, ETSI EN 300 328, ETSI EN 301 489-1, ETSI EN 301 489-17

About this product

It dims one channel of strip from an RF remote, a building control signal or a push switch, and protects itself against overload, heat and wrong wiring.

Applications

  • 12V to 48V constant voltage LED strip
  • The RF 2.4GHz controllers and dimmers of this range
  • Building controls with 0/1-10V dimming
