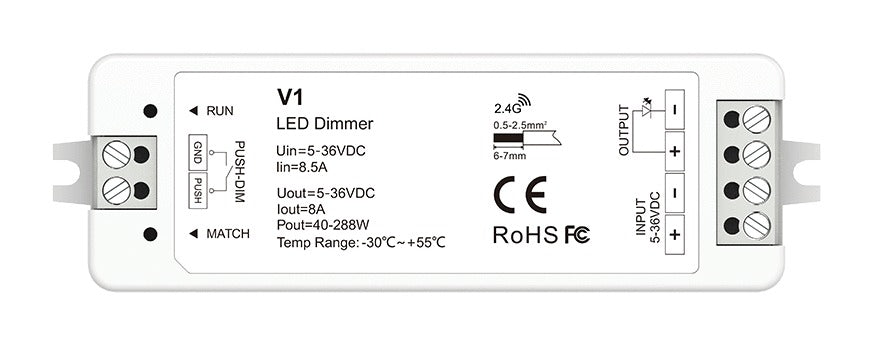

Single Colour LED Controller, RF and Push Dim

Single Colour LED Controller, RF and Push Dim

Compact controller for one channel of LED strip, switched and dimmed by an RF remote or a push switch.

CodeLUZ-181-DM
Spec sheet PDF
Control RF remote and push switch RF 2.4 GHz, range 30 m
Input 5 to 36V DCFor 5, 12, 24 or 36V strip
Output 1 x 8 A40 to 288 W, by supply voltage
Protection IP20 For dry indoor rooms.
Dimming 4096 levels PWM 2 kHz

Specifications

Electrical

Input
5-36V DC
Output
1 channel, 8A; 40 / 96 / 192 / 288W at 5 / 12 / 24 / 36V
Control
RF 2.4GHz remote and push switch
Dimming
4096 levels, PWM 2kHz
Range
30 m

Build and installation

Size
114 x 38 x 26 mm
IP rating
IP20
Ambient temperature
-30 to 55 °C
Standards
EN 61347, ETSI EN 301 489, ETSI EN 300 328

About this product

A compact controller that switches and dims one channel of strip from an RF remote or a wall push switch.

Applications

  • 5V to 36V constant voltage LED strip
  • The RF 2.4GHz controllers and dimmers of this range
  • Momentary wall push switches
