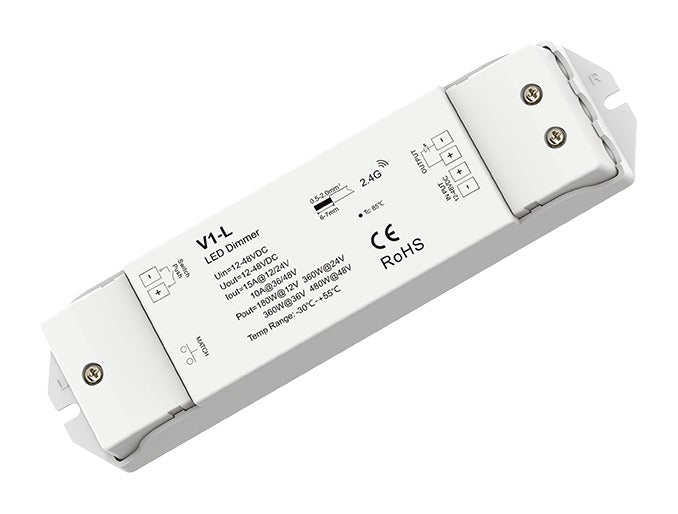

Single Colour LED Controller, RF and Push Dim, 15A
LUZ-L115-DM
- RF and push
- 12 to 48V DC
- 15 A

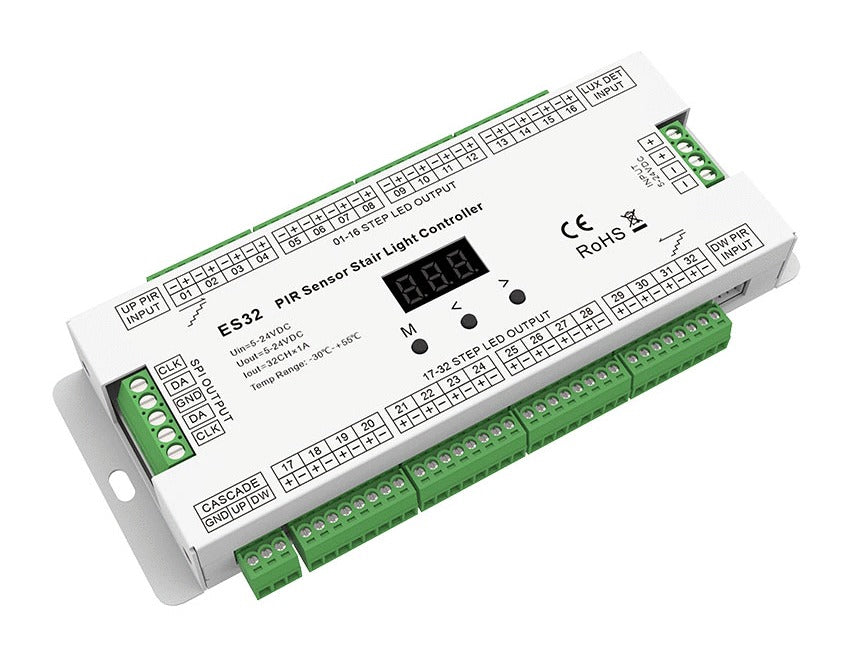

Stair Light Controller with Motion Sensors, 32 Channels
Stair controller that lights the steps one after another when the motion sensors at the top or bottom detect someone.
CodeLUZ-ES32-SL
Spec sheet PDF
Control
Motion and daylight sensors
Two motion sensors on 5 m leads, 3 m range
Input
5 to 24V DCFor 5, 12 or 24V strip
Output
32 x 1 AOne channel per stair step, plus SPI output
Protection
IP20
For dry indoor rooms.
Specifications
Electrical
- Input
- 5-24V DC
- Output
- 32 constant voltage channels, 1A each, plus SPI (TTL) output
- Control
- 2 PIR motion sensors and a daylight sensor (included, with 2 x 5 m leads)
- Range
- 3 m
Build and installation
- Size
- 213 x 130 x 45 mm
- IP rating
- IP20
- Ambient temperature
- -30 to 55 °C
About this product
Motion sensors at the top and bottom of the stairs start the sequence, and the steps light one after another in the direction of travel; the daylight sensor keeps it off in daylight.
Applications
- Staircases with LED strip under each step
- Corridors with step lights
More in Controllers and remotes
See all

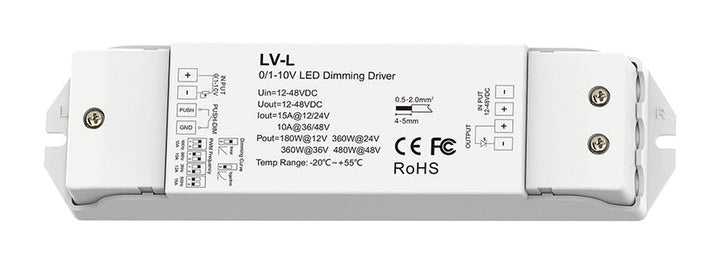

0/1-10V and Push Dim LED Controller, 15A
LUZ-LV-L
- 0/1-10V and push
- 12 to 48V DC
- 15 A

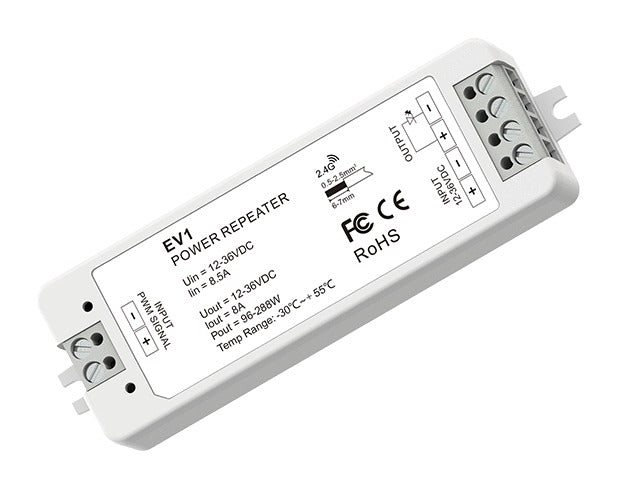

Power Repeater, 8A
LUZ-PR18-R
- PWM repeater
- 5 to 36V DC
- 8 A

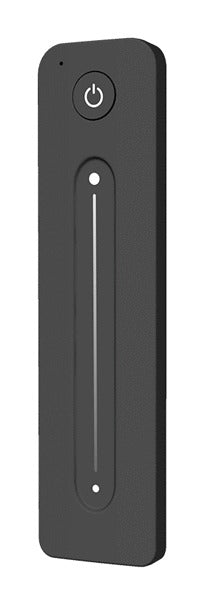

Touch Slide Remote, 1 Zone
LUZ-RC11-DM
- RF 2.4 GHz
- 1 zone

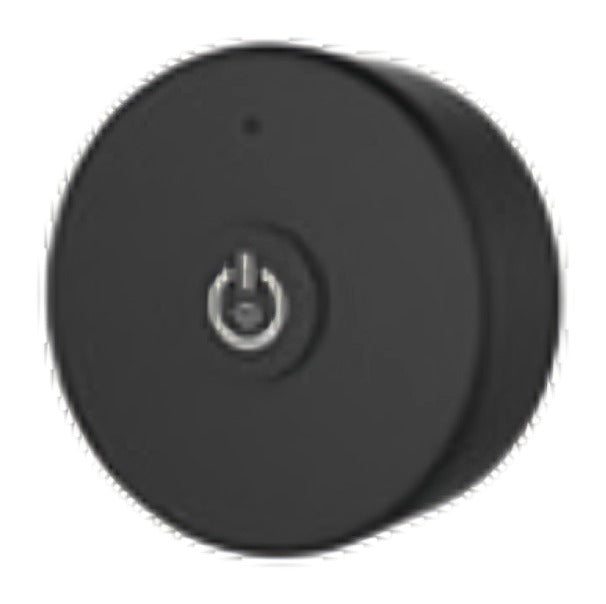

One Key Remote
LUZ-RC12-DM
- RF 2.4 GHz

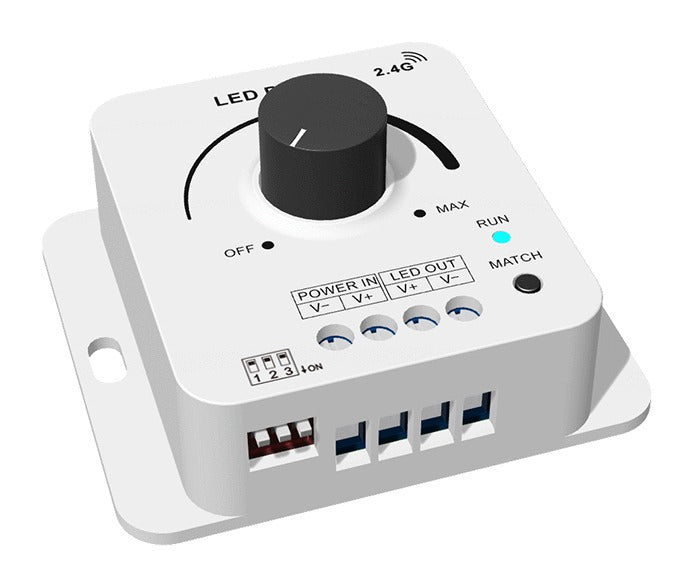

Rotary LED Dimmer, 8A
LUZ-RK18-DM
- Rotary and RF
- 12 to 48V DC
- 8 A

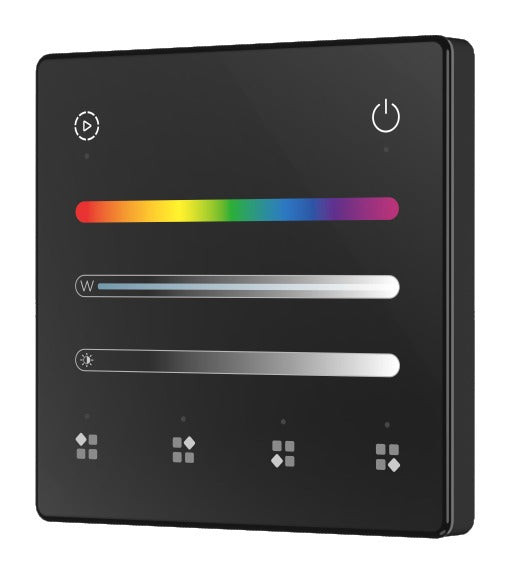

2 versionsGlass Touch Panel Remote, RGBW, 4 Zones
LUZ-RL4-B
- RF 2.4 GHz
- 4 zones

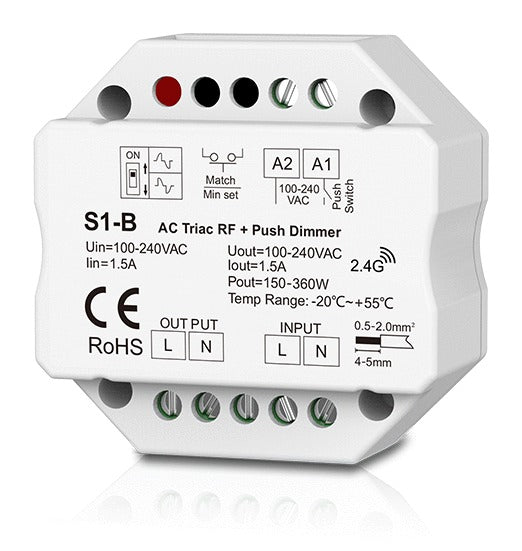

AC Triac Dimmer, RF and Push, 150 to 360W
