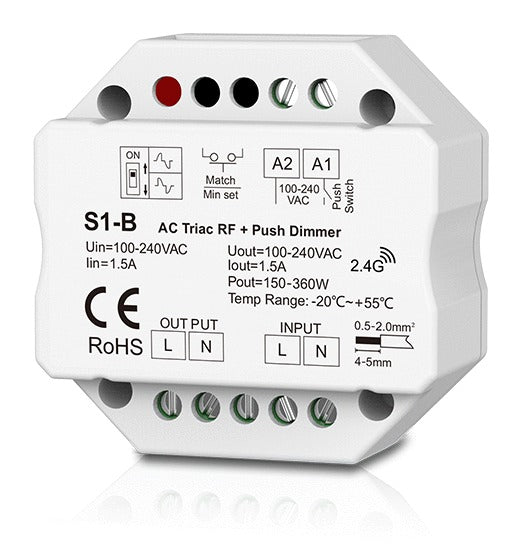

AC Triac Dimmer, RF and Push, 150 to 360W

AC Triac Dimmer, RF and Push, 150 to 360W

Mains phase cut dimmer that fits behind a push switch in a wall box, controlled by an RF remote or the push switch.

CodeLUZ-S150-DM
Spec sheet PDF
Control RF remote and push switch RF 2.4 GHz, range 30 m
Input 100 to 240V ACFits behind a push switch in a wall box
Output 1 x 1.5 A150 W at 100V to 360 W at 240V
Protection IP20 For dry indoor rooms.
Dimming 256 levels Leading or trailing edge; minimum 5 to 30%

Specifications

Electrical

Input
100-240V AC
Output
1 channel, max 1.5A; 150W at 100V to 360W at 240V
Control
RF 2.4GHz remote and push switch
Dimming
256 levels, leading or trailing edge; minimum level 5 to 30%
Protections
Over heat, over load, auto recovery
Range
30 m

Build and installation

Size
52 x 52 x 26 mm
IP rating
IP20
Ambient temperature
-20 to 55 °C
Mounting
Behind a push switch in a standard wall box
Standards
CE, EMC, LVD, RED, EN 62368-1, ETSI EN 300 328, ETSI EN 301 489-1, ETSI EN 301 489-17

About this product

It fits behind a push switch in a standard wall box and dims mains lamps and drivers by phase cut, from the push switch or an RF remote; leading or trailing edge is chosen to suit the load.

Applications

  • Dimmable mains LED lamps and fittings
  • Triac dimmable LED drivers
  • Incandescent and mains halogen lamps
