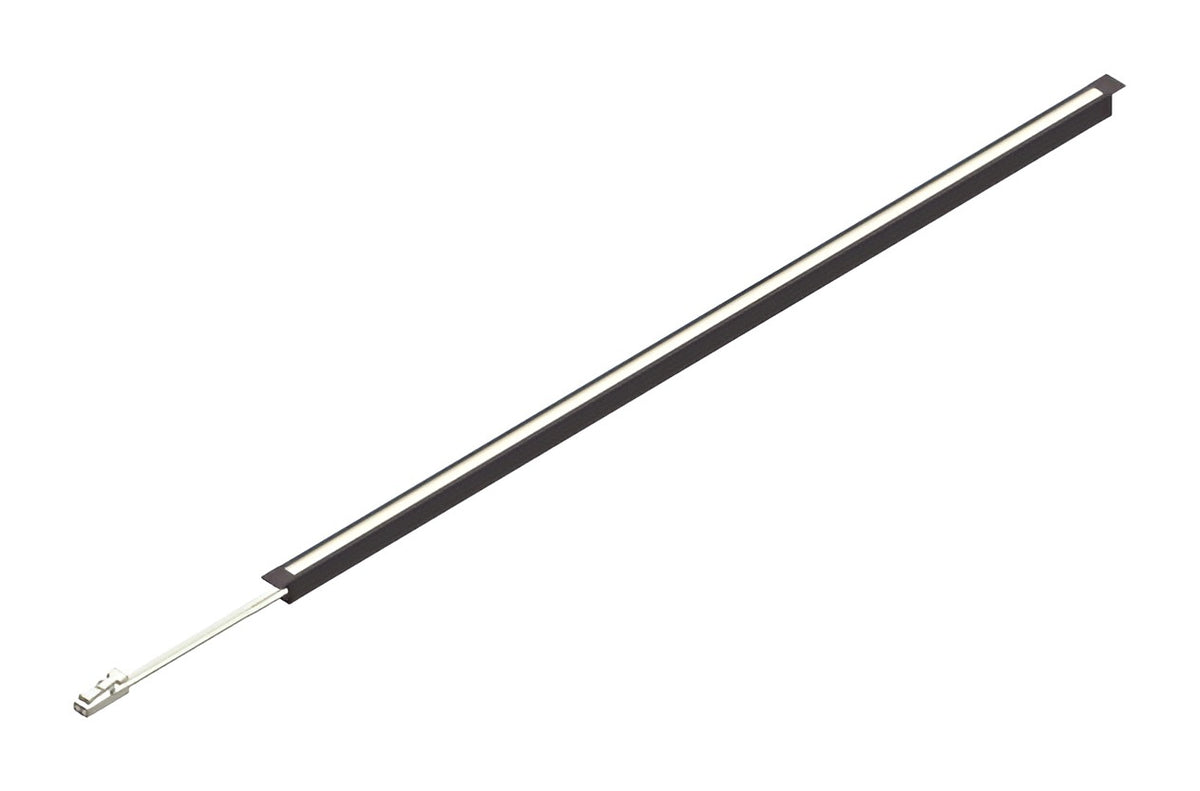

Solder Free Recessed Profile Light 7 x 8, 3 m

Solder Free Recessed Profile Light 7 x 8, 3 m

Slim solder free LED profile light that presses into a narrow milled slot in furniture.

CodeLUZ-P31140-3
Spec sheet PDF
Light colour 3000K
Power 7.5 W/m 24V DC, 168 LEDs per metre
Light output 120 lm/m 16 lm/W
Beam angle 120°
Protection IP20 For dry indoor rooms.
Cut out 6 x 8 mm Groove to cut in the board.
Colour rendering Ra 90+ Accurate colours, for shops, galleries and hotels.
Length 3 m

Specifications

Light

Efficacy
16 lm/W
Colour temperature
3000K
Colour rendering
Ra 90+
Colour consistency
≤6
Beam angle
120°
Lifetime
30000 h

Electrical

Voltage
24V DC
Driver
External
Protection class
III

Build and installation

Size
7 x 8 mm
Cut out
6 x 8 mm
Length
3 m
Material
Aluminium with PC diffuser
Finish
Anthracite
IP rating
IP20
Ambient temperature
-20 to 40 °C
Mounting
Recessed, pressed into a milled slot
LEDs per metre
168
Power per metre
7.5 W/m
Flux per metre
120 lm/m

About this product

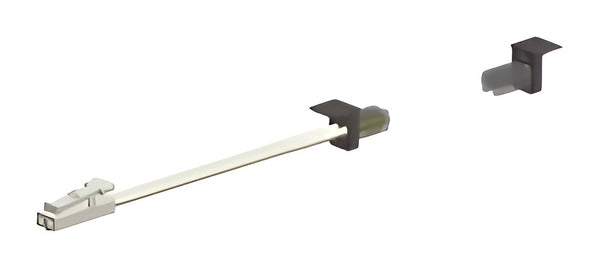

It is pushed straight into a slot milled in the board, with no brackets, and its cable runs through a drilled hole to the system's distributor and driver. Its end cap kit plugs into the profile without soldering. The narrow opal face shows as a fine, even line of light flush with the board.

Features

  • For boards thicker than 18 mm
  • Cuts to length at every LED
  • The cable can leave from either end

Applications

  • Wardrobes and walk in closets
  • Shelving and cabinets
  • Retail fixtures and displays
  • Hotel room furniture
