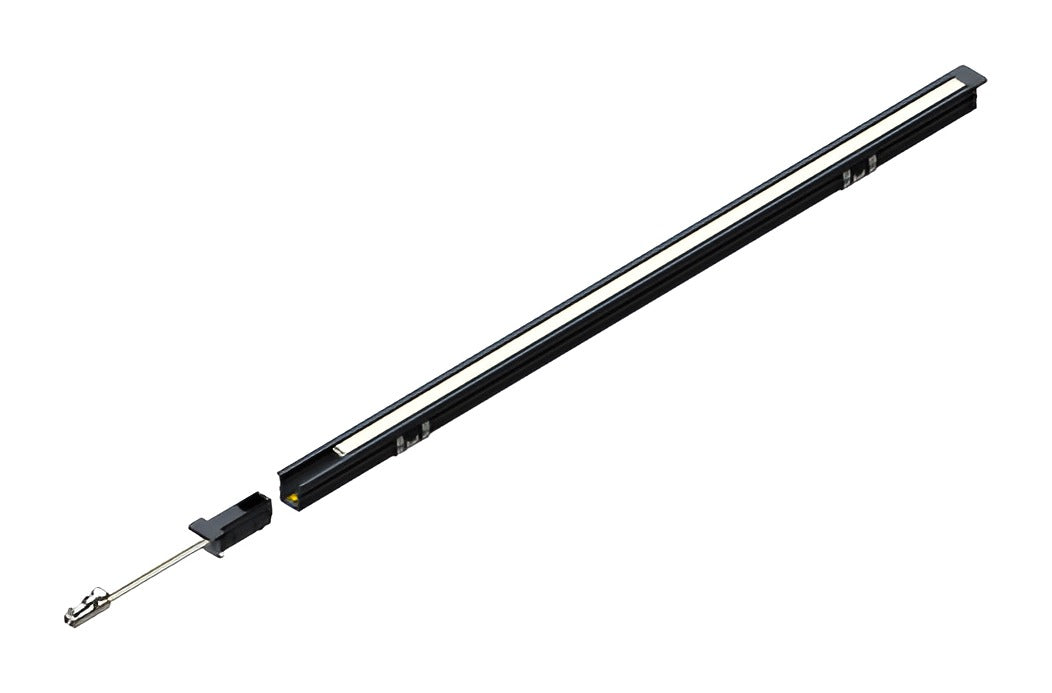

Solder Free Recessed Profile Light 11.5 x 10, 3 m

Solder Free Recessed Profile Light 11.5 x 10, 3 m

Solder free LED profile light that recesses into a milled groove in furniture panels, for a fine built in line of light.

CodeLUZ-P31132-3
Spec sheet PDF
Light colour 3000K
Power 7.5 W/m 24V DC, 150 LEDs per metre
Light output 153 lm/m 20.5 lm/W
Beam angle 120°
Protection IP20 For dry indoor rooms.
Cut out 10 x 10 mm Groove to cut in the board.
Colour rendering Ra 90+ Accurate colours, for shops, galleries and hotels.
Length 3 m

Specifications

Light

Efficacy
20.5 lm/W
Colour temperature
3000K
Colour rendering
Ra 90+
Colour consistency
≤6
Beam angle
120°
Lifetime
30000 h

Electrical

Voltage
24V DC
Driver
External
Protection class
III

Build and installation

Size
11.5 x 10 mm
Cut out
10 x 10 mm
Length
3 m
Material
Aluminium with PC diffuser
Finish
Anthracite
IP rating
IP20
Ambient temperature
-20 to 40 °C
Mounting
Recessed in a milled groove, with brackets
LEDs per metre
150
Power per metre
7.5 W/m
Flux per metre
153 lm/m

About this product

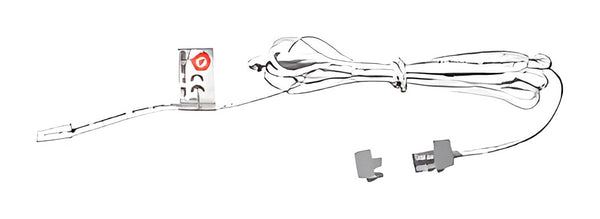

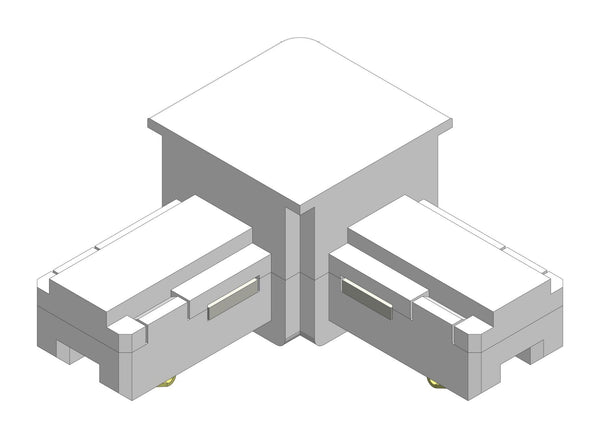

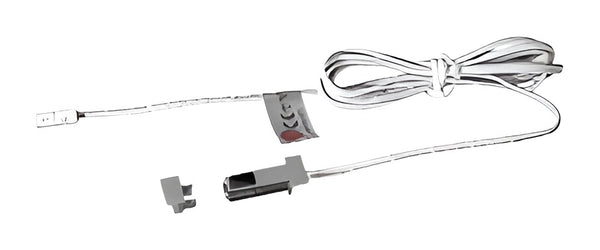

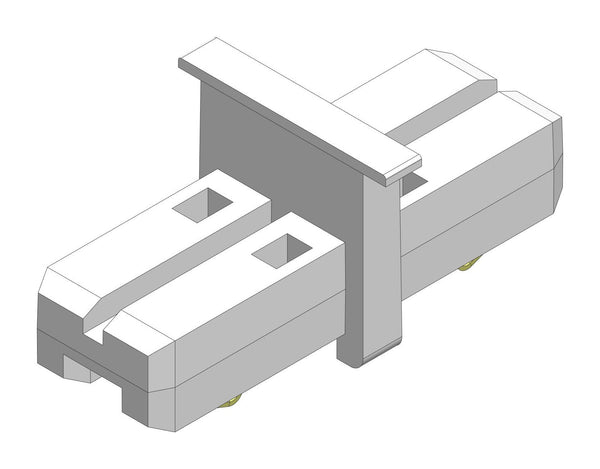

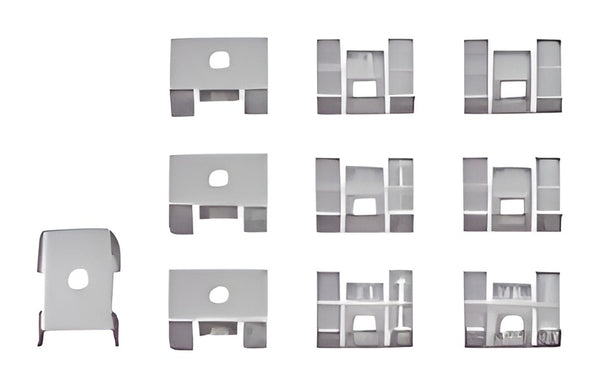

It is pressed into a groove milled in the board and held by installation brackets, with the cable led through a drilled hole to the system's distributor and driver. Its end cap kit, or the hand wave sensor kit, plugs into the profile without soldering, and straight and L connectors link lengths into longer lines. The strip inside can be set straight or at an angle, for a direct or a graded line of light.

Features

  • For boards thicker than 18 mm
  • Cuts to length at every LED
  • The cable can leave from either end

Applications

  • Wardrobes and walk in closets
  • Kitchen cabinets and shelving
  • Retail displays and showcases
  • Hotel room furniture

Works with

Spare parts and accessories made for this product.
