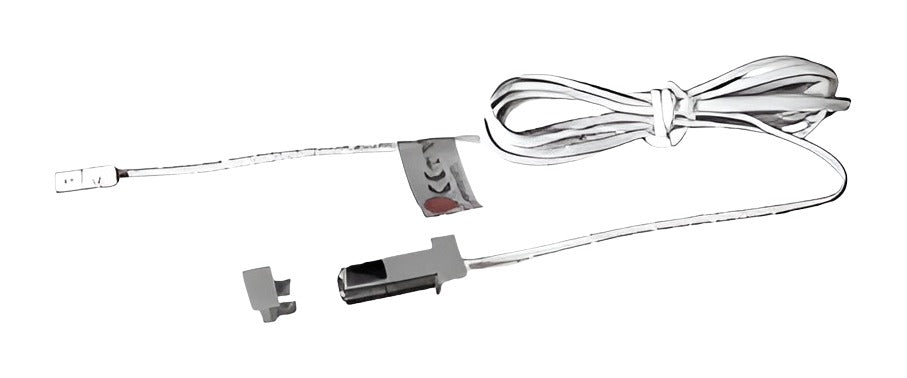

Hand Wave Sensor Connector Kit for P31132

End cap kit for the P31132 recessed profile light with a hand wave sensor that switches and dims the light.

CodeLUZ-QC31132-M

Spec sheet PDF

Control Hand wave sensor Detects at 3 to 8 cm

Input 12 or 24V DC

Output 1 x 2.5 A1.5 A at 24V

Dimming DimmableStepless, 10 to 100%.

Specifications

Electrical

Voltage: 12V or 24V DC
Output: 2.5 A at 12V, 1.5 A at 24V
Control: Hand wave sensor, 3 to 8 cm
Dimming: Stepless, 10 to 100%

Build and installation

Material: PC
Finish: Anthracite
Cable: 1.5 m

About this product

Its connector end cap pushes into the profile without soldering and its cable plugs into the system's six way distributor; a plain end cap closes the other end. A quick wave in front of the sensor switches the light on or off, and holding the hand there dims it up or down.

Features

For single colour profile lights only
Nothing should block the sensor when the driver is switched on; disconnecting and reconnecting the driver restores it
Plug the connector into the profile before the driver is switched on
24 AWG cable
