Solder free profile system

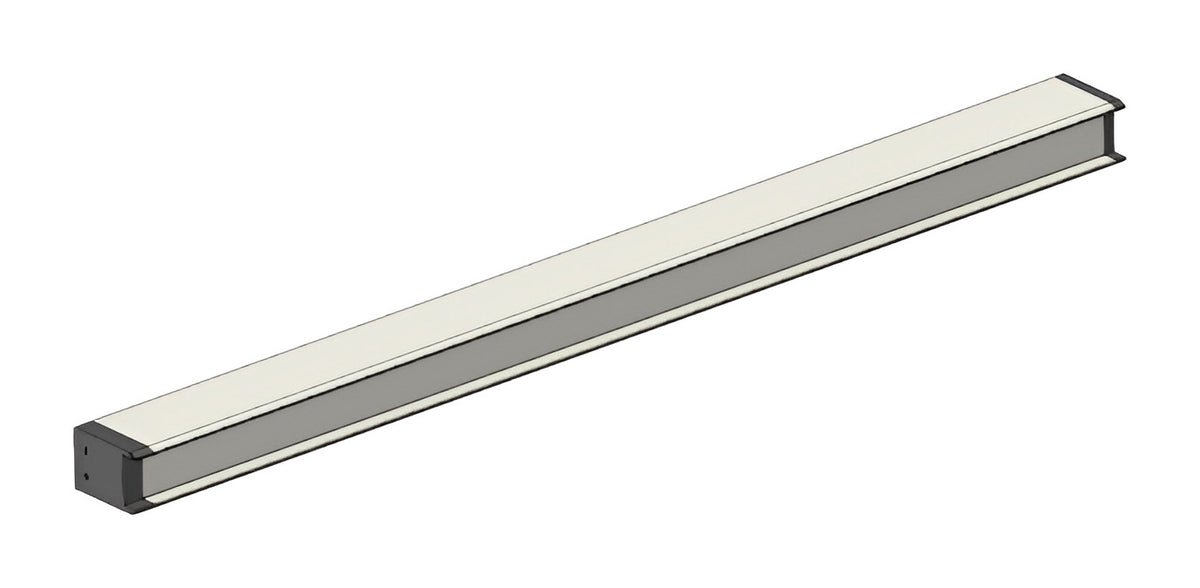

Solder Free Shelf Profile Light for Glass Shelves, 3 m

Solder Free Shelf Profile Light for Glass Shelves, 3 m

Solder free LED profile light for the back edge of glass shelves in cabinets and displays.

CodeLUZ-P31039-3
Spec sheet PDF
Light colour 3000K
Power 7.5 W/m 24V DC, 150 LEDs per metre
Light output 480 lm/m 64 lm/W
Beam angle 120°
Protection IP20 For dry indoor rooms.
Colour rendering Ra 90+ Accurate colours, for shops, galleries and hotels.
Length 3 m

Specifications

Light

Efficacy
64 lm/W
Colour temperature
3000K
Colour rendering
Ra 90+
Colour consistency
≤6
Beam angle
120°
Lifetime
30000 h

Electrical

Voltage
24V DC
Driver
External
Protection class
III

Build and installation

Size
15.3 x 10.3 mm
Length
3 m
Material
Aluminium with PC diffuser
Finish
Anthracite
IP rating
IP20
Ambient temperature
-20 to 40 °C
Mounting
Surface, on the back edge of a glass shelf
LEDs per metre
150
Power per metre
7.5 W/m
Flux per metre
480 lm/m

About this product

It fits onto the back edge of a glass shelf, and its cable runs through a small hole drilled in the cabinet back to the system's distributor and driver. The connector end cap pushes into the profile without soldering and can be fitted at either end. The opal cover gives a soft, even line of light at the back of each shelf.

Features

  • Fits glass shelves 5 to 8 mm thick
  • Cuts to length at every LED, so it can be fitted closely to each shelf

Applications

  • Glass display cabinets
  • Retail and jewellery showcases
  • Bars and wine displays
  • Living room and kitchen cabinets

Works with

Spare parts and accessories made for this product.
