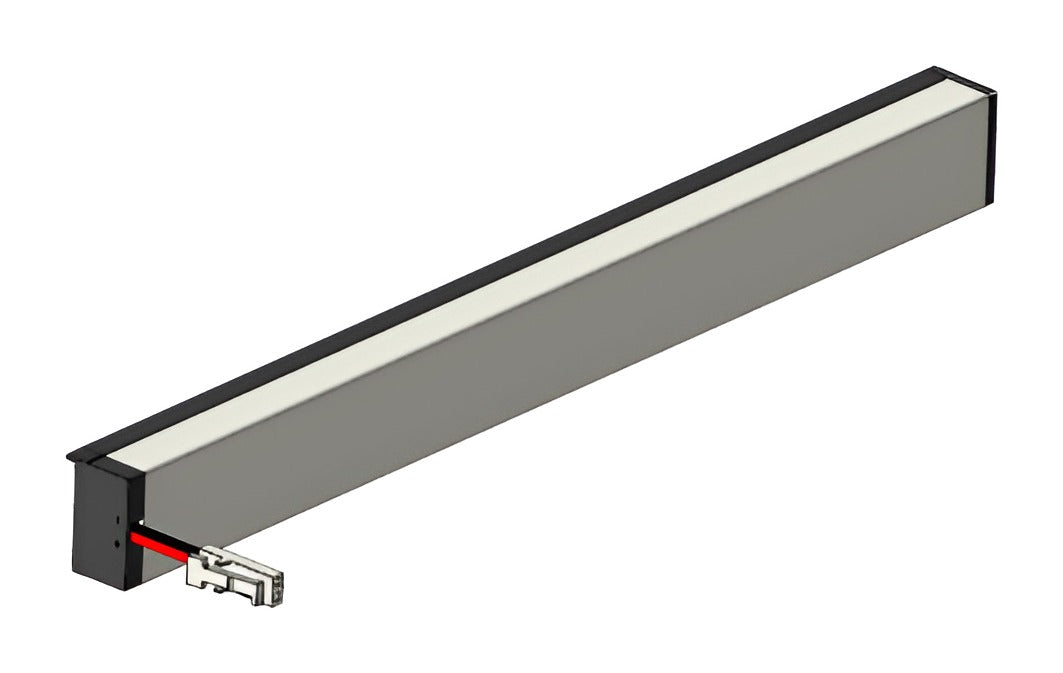

Solder Free Shelf Profile Light for Wooden Shelves, 3 m

Solder Free Shelf Profile Light for Wooden Shelves, 3 m

Solder free LED profile light for the back edge of wooden shelves in cabinets and displays.

CodeLUZ-P31038-3
Spec sheet PDF
Light colour 3000K
Power 7.5 W/m 24V DC, 150 LEDs per metre
Light output 510 lm/m 68 lm/W
Beam angle 120°
Protection IP20 For dry indoor rooms.
Colour rendering Ra 90+ Accurate colours, for shops, galleries and hotels.
Length 3 m

Specifications

Light

Efficacy
68 lm/W
Colour temperature
3000K
Colour rendering
Ra 90+
Colour consistency
≤6
Beam angle
120°
Lifetime
30000 h

Electrical

Voltage
24V DC
Driver
External
Protection class
III

Build and installation

Size
18.8 x 13.2 mm
Length
3 m
Material
Aluminium with PC diffuser
Finish
Anthracite
IP rating
IP20
Ambient temperature
-20 to 40 °C
Mounting
Surface, on the back edge of a shelf
LEDs per metre
150
Power per metre
7.5 W/m
Flux per metre
510 lm/m

About this product

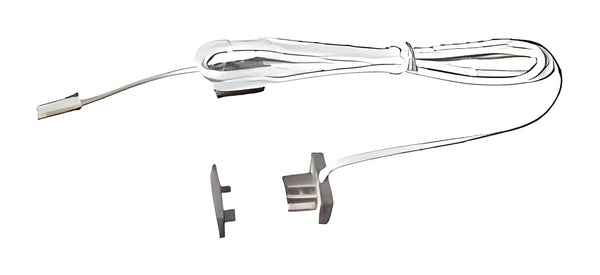

It fits onto the back edge of a wooden shelf, and its cable passes through a small hole drilled in the cabinet back to the system's distributor and driver. The connector end cap of its end cap kit pushes into the profile and makes contact without soldering, so lengths cut on site are ready to connect. The opal cover gives a soft, even line of light along the back of the shelf.

Features

  • Cuts to length at every LED, so it can be fitted closely to each shelf
  • Fits an 18 mm shelf board

Applications

  • Display cabinets and showcases
  • Retail shelving
  • Kitchen and living room cabinets
  • Bars and hotel back shelves
