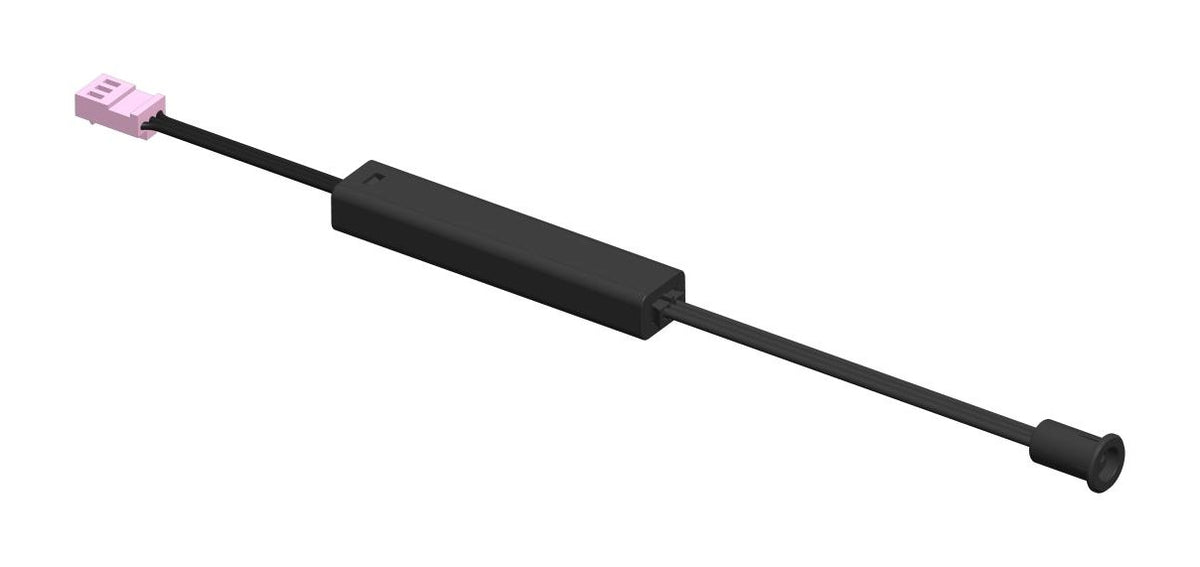

Door Sensor Switch, Recessed, Black
Infrared door sensor that switches the lights of a cabinet or wardrobe on when its door opens and off when it closes.
CodeLUZ-DS96608
Spec sheet PDF
Control
Infrared door sensor
Detects at 4 to 15 cm
Input
12 or 24V DC
Protection
IP20
For dry indoor rooms.
Cut out
D8 mm
Groove to cut in the board.
Specifications
Electrical
- Input
- 12V or 24V DC
- Control
- Infrared door sensor, 4 to 15 cm detection range
- Protection class
- III
Build and installation
- Size
- Sensor head D10.5 x 14; switch body 65 x 13 x 9 mm
- Cut out
- D8 mm
- Weight
- 0.04 kg
- Material
- ABS
- Finish
- Black
- IP rating
- IP20
- Ambient temperature
- -20 to 45 °C
- Mounting
- Recessed
About this product
The sensor head fits a small drilled hole in the cabinet frame, facing the door, and its plug connects to the sensor port of the drivers with sensor control or of the LED control box. While the closed door sits in front of the sensor the lights stay off; when the door opens they come on.
Applications
- Wardrobes, kitchen cabinets and display cabinets with doors
- The drivers with sensor control and the LED control box of this system
