LUZ25 system
LUZ25 Magnetic Linear Diffused Light 30W, 900 mm, CCT
LUZ25 magnetic system, 48V

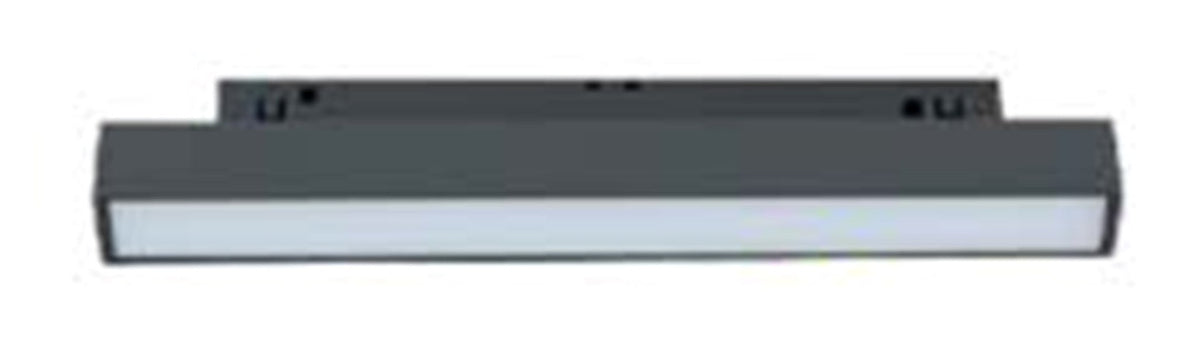

Magnetic Linear Diffused Light 30W, 900 mm, CCT

Magnetic linear light with an opal diffuser, for the LUZ25 track.

CodeLUZ-ML2030
Spec sheet PDF
Finish Black
Light colour CCT selectable
Power30 W 48V DC
Light output3966 lm 132 lm/W
Beam angle 100°
Protection IP20 For dry indoor rooms.
Colour rendering Ra 90 Accurate colours, for shops, galleries and hotels.
Dimming DimmableWith a dimmable 48V driver.

Specifications

Light

Luminous flux
3966 lm
Colour temperature
CCT selectable
Colour rendering
Ra 90
Beam angle
100°

Electrical

Power
30 W
Voltage
48V DC
Dimming
Dimmable with a dimmable 48V driver

Build and installation

Size
907 x 34 x 50 mm
IP rating
IP20
LUZ25 magnetic system, 48V
LUZ25 magnetic system, 48V

Recessed and surface 48V tracks

Spots, linear lights and pendants hold to the track by magnet and move along it without tools. On track drivers or separate power supplies feed the track.

Explore the LUZ25 system

About this product

It clicks onto the LUZ25 track by magnet and slides along it, so lights can be moved or added without tools, and it runs from the track's driver. Its opal diffuser gives a soft, continuous line of general light along the track.

Applications

  • Shops and showrooms
  • Offices and meeting rooms
  • Restaurants and bars
  • Living areas and kitchens

Works with

Tracks, drivers and connectors of the LUZ25 system.
