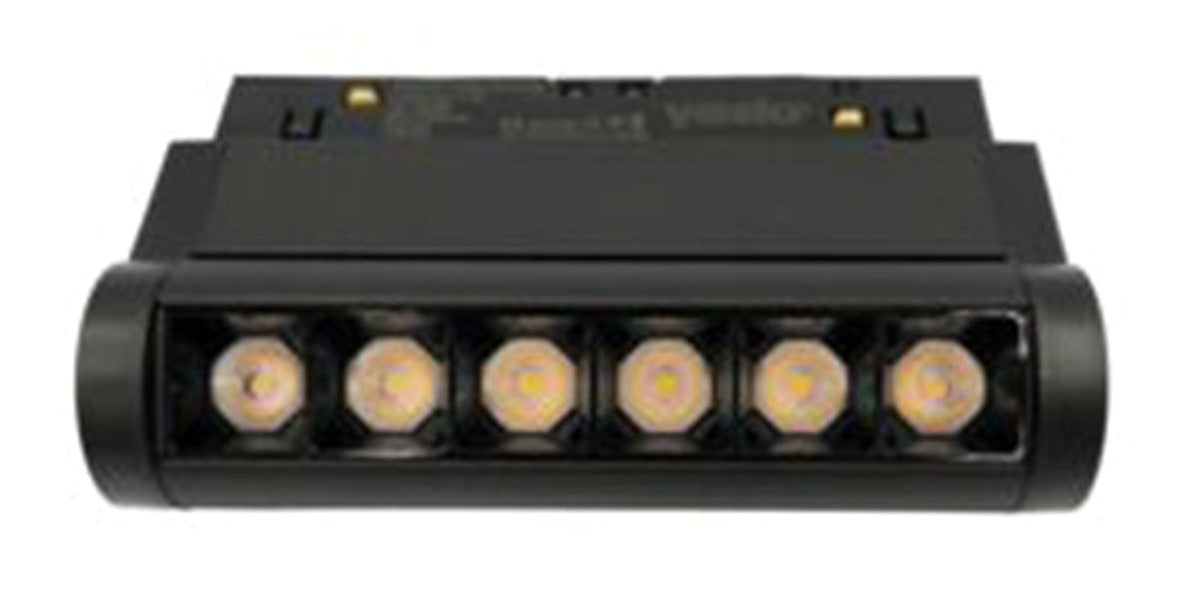

Magnetic Foldable Grille Light 12W, CCT, Black
Folding magnetic grille light that tilts on the LUZ25 track.
CodeLUZ-MT12
Spec sheet PDF
Light colour
CCT selectable
Power12 W
48V DC
Light output996 lm
83 lm/W
Beam angle
38°
Protection
IP20
For dry indoor rooms.
Colour rendering
Ra 90
Accurate colours, for shops, galleries and hotels.
Dimming
DimmableWith a dimmable 48V driver.
Specifications
Light
- Luminous flux
- 996 lm
- Colour temperature
- CCT selectable
- Colour rendering
- Ra 90
- Beam angle
- 38°
Electrical
- Power
- 12 W
- Voltage
- 48V DC
- Dimming
- Dimmable with a dimmable 48V driver
Build and installation
- Size
- 226 x 22 x 55 mm
- Finish
- Black
- IP rating
- IP20
LUZ25 magnetic system, 48V
Recessed and surface 48V tracks
Spots, linear lights and pendants hold to the track by magnet and move along it without tools. On track drivers or separate power supplies feed the track.
Explore the LUZ25 systemAbout this product
It clicks onto the LUZ25 track by magnet and folds down from it, so its light can be angled onto a wall, a shelf or a display. Its grille keeps the light sources out of view, for low glare at eye level.
Applications
- Shops and showrooms
- Offices and meeting rooms
- Restaurants and bars
- Living areas and kitchens
Works with
Tracks, drivers and connectors of the LUZ25 system.
