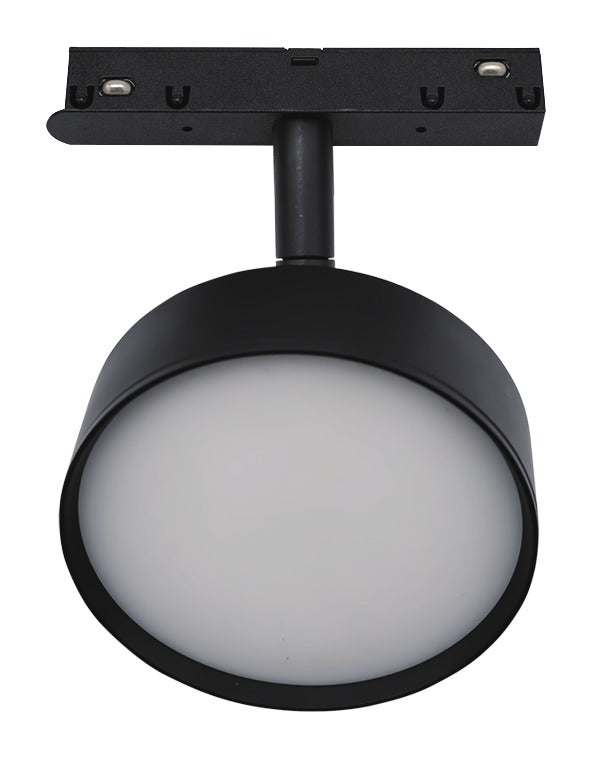

Magnetic Round Panel Light 9W, CCT
Magnetic light with a round panel head and an opal diffuser, for the LUZ25 track.
CodeLUZ-MT14
Spec sheet PDF
Light colour
CCT selectable
Power9 W
48V DC
Light output810 lm
90 lm/W
Beam angle
36°
Protection
IP20
For dry indoor rooms.
Colour rendering
Ra 90
Accurate colours, for shops, galleries and hotels.
Dimming
DimmableWith a dimmable 48V driver.
Specifications
Light
- Luminous flux
- 810 lm
- Colour temperature
- CCT selectable
- Colour rendering
- Ra 90
- Beam angle
- 36°
Electrical
- Power
- 9 W
- Voltage
- 48V DC
- Dimming
- Dimmable with a dimmable 48V driver
- Protection class
- III
Build and installation
- Size
- D95 mm
- Material
- Aluminium, PP diffuser
- Finish
- Black
- IP rating
- IP20
LUZ25 magnetic system, 48V
Recessed and surface 48V tracks
Spots, linear lights and pendants hold to the track by magnet and move along it without tools. On track drivers or separate power supplies feed the track.
Explore the LUZ25 systemAbout this product
It clicks onto the LUZ25 track by magnet and slides along it, so lights can be moved or added without tools, and it runs from the track's driver. Its colour temperature is selectable, and the opal diffuser across the round head keeps the LEDs out of view.
Applications
- Shops and showrooms
- Restaurants and bars
- Hotel lobbies
- Living areas and kitchens
Works with
Tracks, drivers and connectors of the LUZ25 system.
