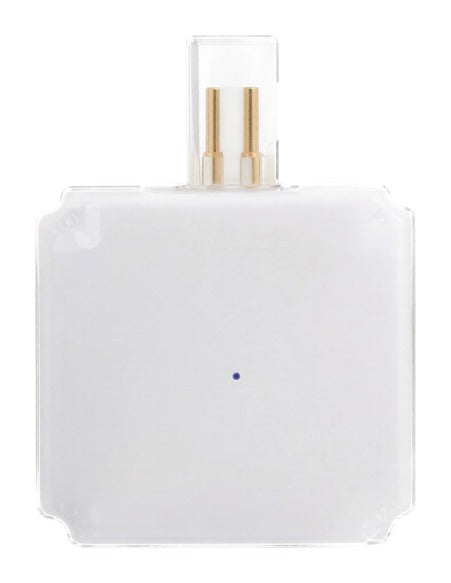

Modular Linear Light Square Junction 2.5W, CCT

Lit square junction piece for the BD2320 and BD2340 modular linear lights.

CodeLUZ-BD2352-S

Spec sheet PDF

Light colour CCT selectable (3000K / 4000K / 6500K)

Power2.5 W 200-240V AC

Light output250 lm 100 lm/W

Beam angle 120°

Protection IP40 For dry indoor rooms, closed to small objects.

Colour rendering Ra 80 Meets the Ra 80 minimum for most indoor work.

Specifications

Light

Luminous flux: 250 lm
Colour temperature: CCT selectable (3000K / 4000K / 6500K)
Colour rendering: Ra 80
Beam angle: 120°
Lifetime: 30000 h

Electrical

Power: 2.5 W
Input: 200-240V AC
Power factor: 0.5

Build and installation

Size: 58 x 58 x 36 mm
Weight: 0.068 kg
Material: Polycarbonate
IP rating: IP40
Ambient temperature: -20 to 45 °C

About this product

It plugs onto the ends of the modular linear lights where they meet at a right angle, at the corners of an L or a square or the centre of a cross, and lights the joint so the shape reads as one line of light. The colour temperature is selectable between warm, neutral and cool white.
