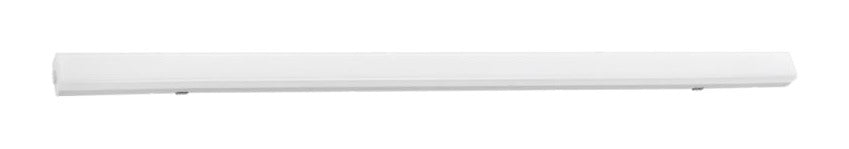

Modular Linear Light 40W, 1200 mm, CCT

Modular Linear Light 40W, 1200 mm, CCT

Linear light that links into straight runs and geometric shapes, with a selectable colour temperature.

CodeLUZ-BD2340-CCT
Spec sheet PDF
Light colour CCT selectable (3000K / 4000K / 6500K)
Power40 W 200-240V AC
Light output4000 to 4400 lm
Beam angle 120°
Protection IP40 For dry indoor rooms, closed to small objects.
Colour rendering Ra 80 Meets the Ra 80 minimum for most indoor work.

Specifications

Light

Luminous flux
4000 to 4400 lm
Colour temperature
CCT selectable (3000K / 4000K / 6500K)
Colour rendering
Ra 80
Beam angle
120°
Lifetime
30000 h

Electrical

Power
40 W
Input
200-240V AC
Power factor
0.9

Build and installation

Size
1200 x 50 x 36 mm
Weight
0.448 kg
Material
Polycarbonate
IP rating
IP40
Ambient temperature
-20 to 45 °C
Mounting
Surface on link plates, or suspended with the hanging kit

About this product

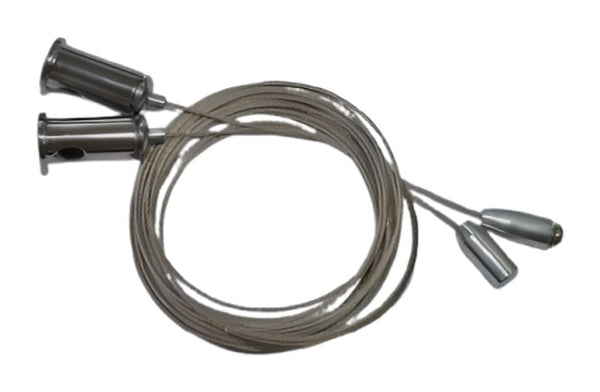

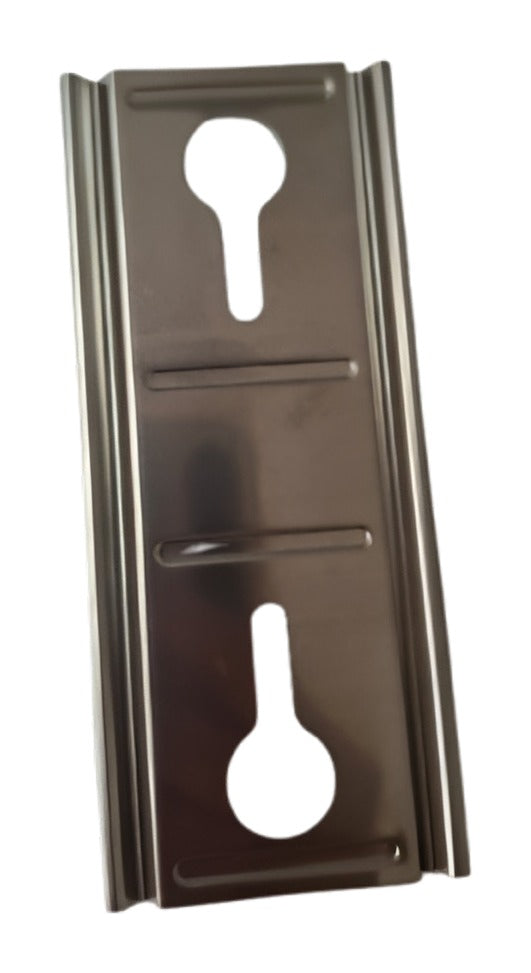

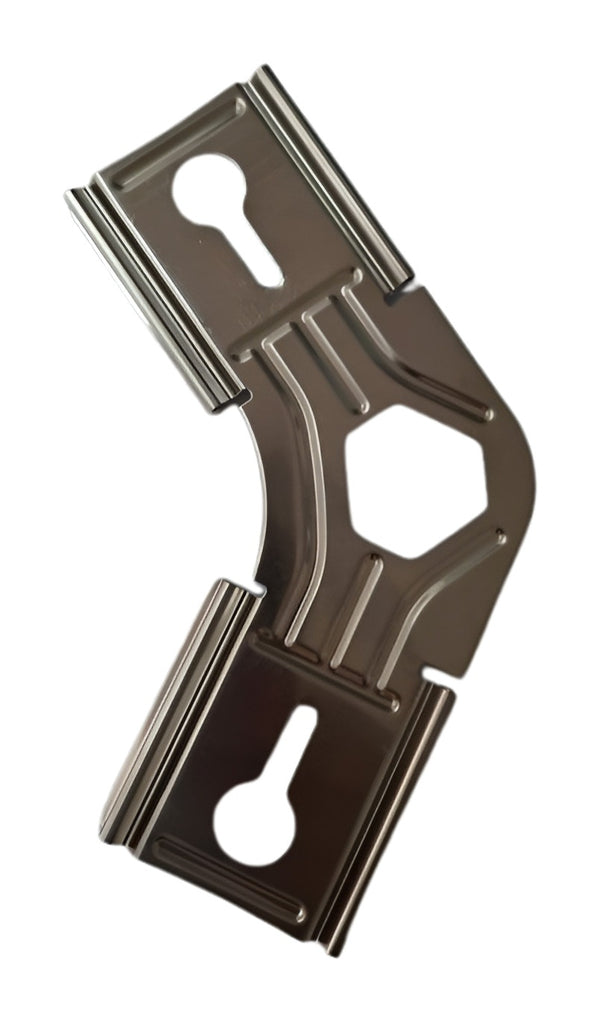

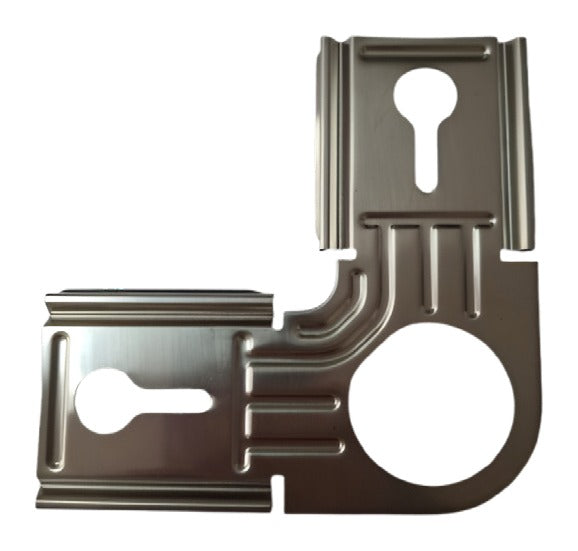

Lights join end to end, or through lit square and triangle junction pieces, into lines, L shapes, crosses, squares, Y shapes and hexagons. Metal link plates fix the joints to the ceiling, or a wire kit hangs the run; both are sold separately. The opal body gives a soft, even line of light, and the colour temperature is selectable between warm, neutral and cool white.

Applications

  • Offices and meeting rooms
  • Reception areas and lobbies
  • Shops and showrooms
  • Corridors
  • Classrooms

Works with

Spare parts and accessories made for this product.
