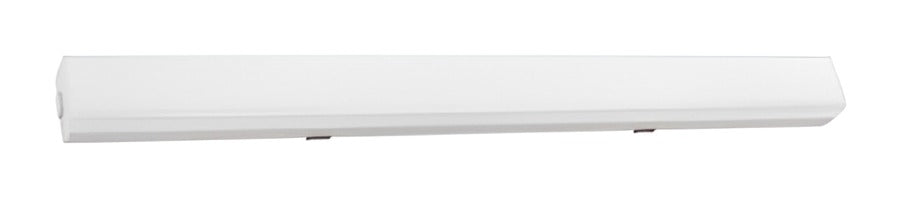

Modular Linear Light 20W, 600 mm, CCT

Modular Linear Light 20W, 600 mm, CCT

Linear light that links into straight runs and geometric shapes, with a selectable colour temperature.

CodeLUZ-BD2320-CCT
Spec sheet PDF
Light colour CCT selectable (3000K / 4000K / 6500K)
Power20 W 200-240V AC
Light output2000 to 2200 lm
Beam angle 120°
Protection IP40 For dry indoor rooms, closed to small objects.
Colour rendering Ra 80 Meets the Ra 80 minimum for most indoor work.

Specifications

Light

Luminous flux
2000 to 2200 lm
Colour temperature
CCT selectable (3000K / 4000K / 6500K)
Colour rendering
Ra 80
Beam angle
120°
Lifetime
30000 h

Electrical

Power
20 W
Input
200-240V AC
Power factor
0.5

Build and installation

Size
600 x 50 x 36 mm
Weight
0.26 kg
Material
Polycarbonate
IP rating
IP40
Ambient temperature
-20 to 45 °C

About this product

Lights join end to end, or through lit square and triangle junction pieces, into lines and geometric shapes. The opal body gives a soft, even line of light, and the colour temperature is selectable between warm, neutral and cool white.

Applications

  • Offices and meeting rooms
  • Reception areas and lobbies
  • Shops and showrooms
  • Corridors
  • Classrooms
