Clip for Weatherproof Linear Fixture BD11-60 CCT
CLIP FOR BD11-60 CCT

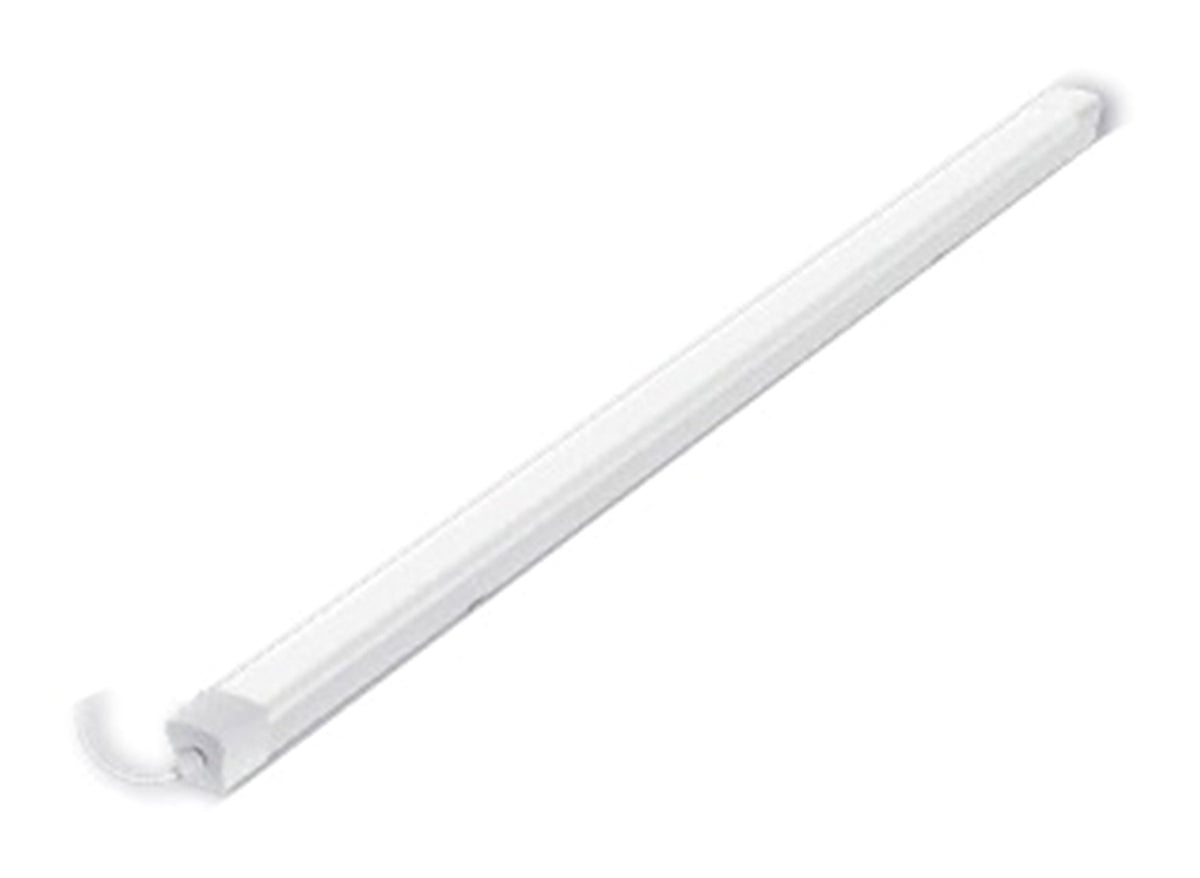

Weatherproof Linkable Linear Fixture 60W, 1200 mm, CCT
Weatherproof linear light that links end to end, with a colour temperature switch.
CodeLUZ-BD11-60CT
Spec sheet PDF
Light colour
CCT switch (3000K / 4000K / 6500K)
Power60 W
200-240V AC
Light output6000 to 6600 lm
Beam angle
120°
Protection
IP65
Outdoor use, rain and dust proof.
Colour rendering
Ra 80
Meets the Ra 80 minimum for most indoor work.
Specifications
Light
- Luminous flux
- 6000 to 6600 lm
- Colour temperature
- CCT switch (3000K / 4000K / 6500K)
- Colour rendering
- Ra 80
- Beam angle
- 120°
- Lifetime
- 30000 h
Electrical
- Power
- 60 W
- Input
- 200-240V AC
- Power factor
- 0.9
Build and installation
- Size
- 1200 x 58 x 53 mm
- Weight
- 0.76 kg
- Material
- Aluminium and polycarbonate
- Finish
- White
- IP rating
- IP65
- Ambient temperature
- -20 to 45 °C
About this product
The sealed body keeps out water spray and dust, and fittings link end to end into long lines from one supply; a switch sets warm, neutral or cool white.
Applications
- Car parks and canopies
- Garages and workshops
- Covered walkways and loading bays
- Wet and washdown areas
- Building exteriors
- Supermarket aisles and warehouses
