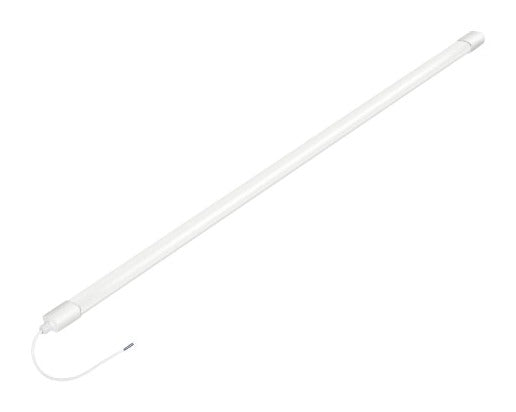

Weatherproof Linkable Linear Fixture 36W, 1200 mm

Weatherproof Linkable Linear Fixture 36W, 1200 mm

Slim weatherproof linear light that links end to end.

CodeLUZ-BD09-3
Spec sheet PDF
CCT 3000K
Light colour 3000K
Power36 W 170-265V AC
Light output3600 lm 100 lm/W
Beam angle 120°
Protection IP65 Outdoor use, rain and dust proof.
Colour rendering Ra 80 Meets the Ra 80 minimum for most indoor work.

Specifications

Light

Luminous flux
3600 lm
Colour temperature
3000K
Colour rendering
Ra 80
Beam angle
120°
Lifetime
30000 h

Electrical

Power
36 W
Input
170-265V AC
Power factor
0.9

Build and installation

Size
1200 x 37 x 29 mm
Weight
0.28 kg
Material
Polycarbonate
Finish
White
IP rating
IP65
Ambient temperature
-20 to 40 °C

About this product

The slim sealed polycarbonate body keeps out water spray and dust, and fittings link end to end into long lines fed from one supply. Its broad beam spreads an even, warm white light along the run.

Applications

  • Car parks and canopies
  • Garages and workshops
  • Covered walkways and loading bays
  • Wet and washdown areas
  • Building exteriors
  • Supermarket aisles and warehouses
