Weatherproof battens

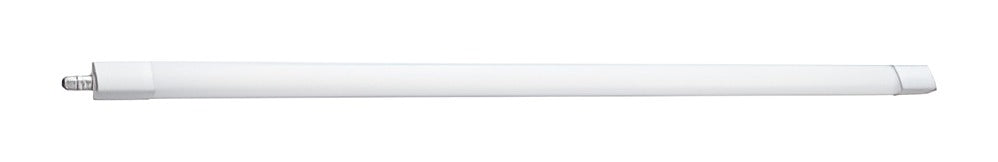

Weatherproof Linkable Linear Fixture 36W, 1200 mm, CCT

Weatherproof Linkable Linear Fixture 36W, 1200 mm, CCT

Sealed linear LED fixture for damp and dusty areas, linkable into continuous runs.

CodeLUZ-BD03-36
Spec sheet PDF
Light colour CCT selectable (3000K / 4000K / 6500K)
Power36 W 200-240V AC
Light output3600 to 4000 lm
Beam angle 120°
Protection IP65 Outdoor use, rain and dust proof.
Colour rendering Ra 80 Meets the Ra 80 minimum for most indoor work.

Specifications

Light

Luminous flux
3600 to 4000 lm
Colour temperature
CCT selectable (3000K / 4000K / 6500K)
Colour rendering
Ra 80
Beam angle
120°
Lifetime
30000 h

Electrical

Power
36 W
Input
200-240V AC
Power factor
0.9

Build and installation

Size
1200 x 46 x 33 (1235 overall) mm
Weight
0.352 kg
Material
Polycarbonate
IP rating
IP65
Ambient temperature
-20 to 45 °C

About this product

The sealed body keeps out dust and water jets, and its opal cover gives an even line of light. Fittings plug into each other end to end, so a long run is fed from one supply. The colour temperature is selectable between warm, neutral and cool white.

Features

  • Links up to six fittings in series

Applications

  • Car parks and garages
  • Warehouses and workshops
  • Covered walkways and canopies
  • Wet and washdown areas
  • Stores and plant rooms
