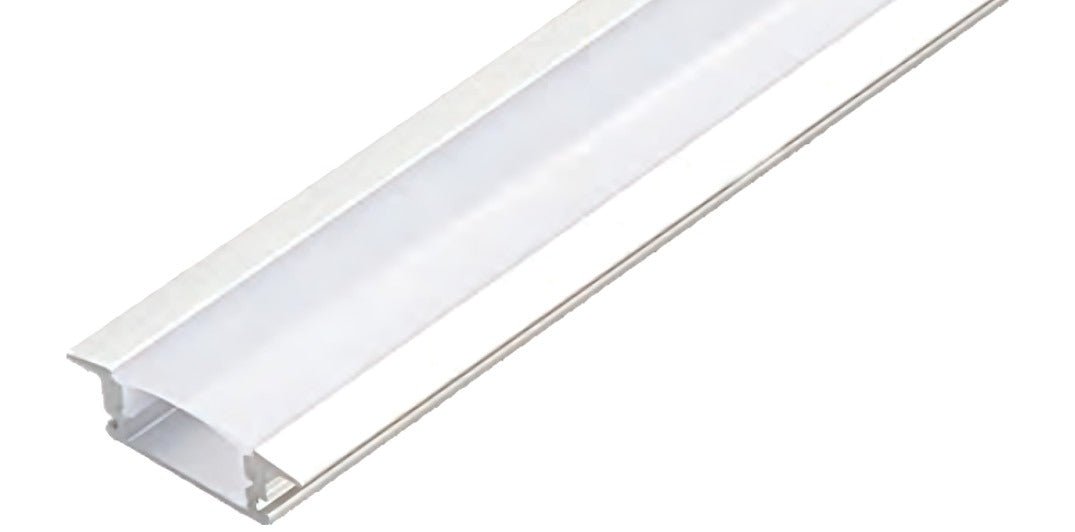

Shown: SilverRecessed Aluminium Profile 23.6 x 7, 1 m
Recessed aluminium profile for LED strip with a flanged edge and an opal cover.
CodeRAP-205B
Spec sheet PDF
Finish Black
Length
1 m
Section
23.6 x 7 mm
For strip up to 12 mm wide and 18 W/m
Mounting
Recessed
With clips
Specifications
Build and installation
- Size
- 23.6 x 7 mm
- Length
- 1 m
- Material
- AL6063-T5 aluminium, opal PC cover
- Finish
- Anodised aluminium or black
- Mounting
- Recessed, with clips
- Max power per metre
- 18 W/m
- Max PCB width
- 12 mm
About this product
It sits in a groove cut into furniture, a ceiling or a wall, and its flange covers the edge of the cut for a clean finish. The strip runs in the channel under the opal cover, which spreads the light into an even line. In anodised aluminium or black.
Features
- 17 mm wide body below the flange
- Supplied with its cover, end caps and clips
- Constant voltage strip recommended
Applications
- Furniture panels and shelves
- Ceilings and walls
- Shop fittings and displays
- Kitchens and wardrobes
