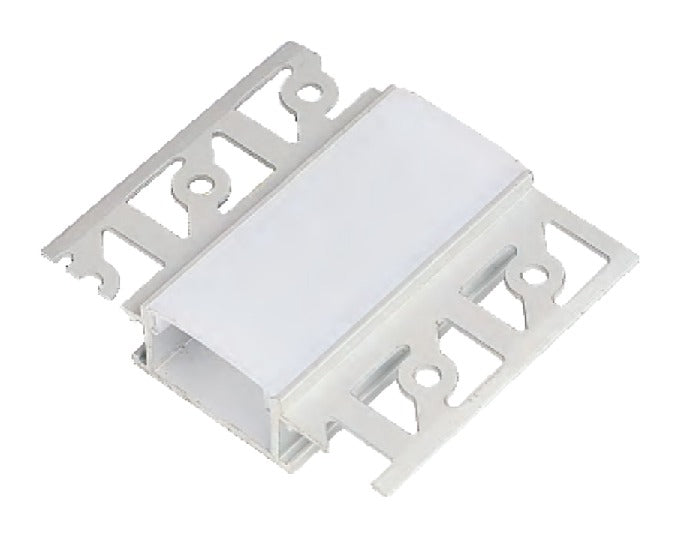

Plaster In Recessed Profile 66.7 x 14, 1 m

Plaster In Recessed Profile 66.7 x 14, 1 m

Wide plaster in aluminium profile for a double row LED strip, with an opal cover.

CodeTAP-305
Spec sheet PDF
Length 1 m
Section 66.7 x 14 mm For strip up to 20 mm wide and 24 W/m
Mounting Plaster in Recessed, plastered in flush

Specifications

Build and installation

Size
66.7 x 14 mm
Length
1 m
Material
AL6063-T5 aluminium, opal PC cover
Finish
Anodised aluminium
Mounting
Recessed
Max power per metre
24 W/m
Max PCB width
20 mm

About this product

It is recessed into a plasterboard ceiling or wall and its perforated wings are filled over, so only the wide opal cover shows. The strip is fitted first and the cover then closes the channel, giving a broad, even band of light with no dark spots.

Features

  • Made for a double row strip
  • Supplied with its opal cover and end caps
  • Constant voltage strip recommended

Applications

  • Plasterboard ceilings and walls
  • Offices and meeting rooms
  • Shops and showrooms
  • Corridors and lobbies
