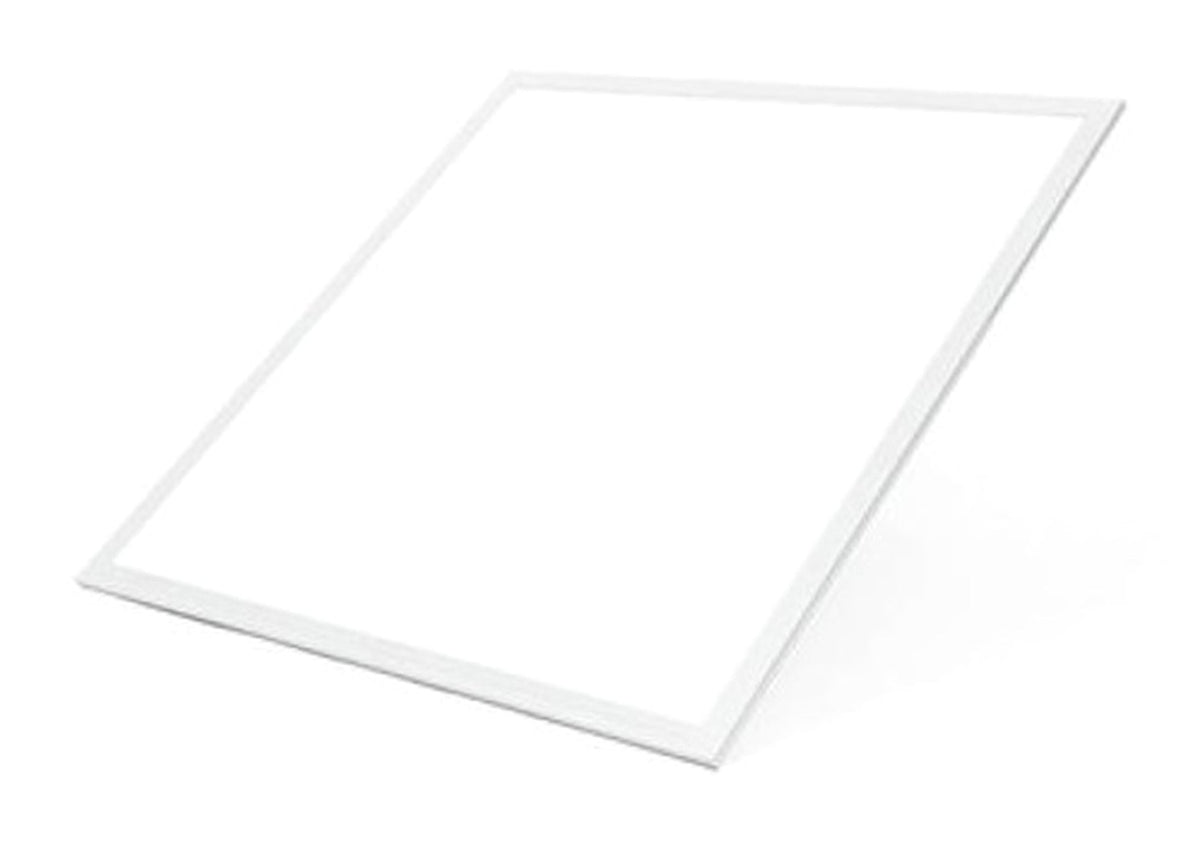

Recessed Panel 50W, 600 x 600, CCT

Recessed panel that drops into a T grid ceiling, with a selectable colour temperature.

CodeLUZ-RP6060CCT

Spec sheet PDF

Light colour CCT selectable (3000K / 4000K / 6500K)

Power50 W 175-250V AC

Beam angle 120°

Protection IP40 For dry indoor rooms, closed to small objects.

Colour rendering Ra 82 to 85 Meets the Ra 80 minimum for most indoor work.

Dimming Not dimmable

Specifications

Light

Colour temperature: CCT selectable (3000K / 4000K / 6500K)
Colour rendering: Ra 82 to 85
Colour consistency: <6
Beam angle: 120°
Lifetime: 50000 (L70)

Electrical

Power: 50 W
Input: 175-250V AC
Dimming: Not dimmable
Driver: Constant current, flicker free, not dimmable; replaceable by a professional
Power factor: 0.9
Protection class: II

Build and installation

Size: 595 x 595 x 25 mm
Material: Aluminium frame, PP diffuser, PMMA lens
Finish: White
IP rating: IP40
Ambient temperature: -20 to 50 °C
Mounting: Recessed in 600 x 600 T grid ceilings; suspension kit available
Emergency: Optional 3 hour emergency pack

About this product

It drops into a standard T grid ceiling in place of a ceiling tile, and its diffuser spreads even light across the whole face. The driver can be replaced by an electrician, and one item covers warm, neutral and cool white.
