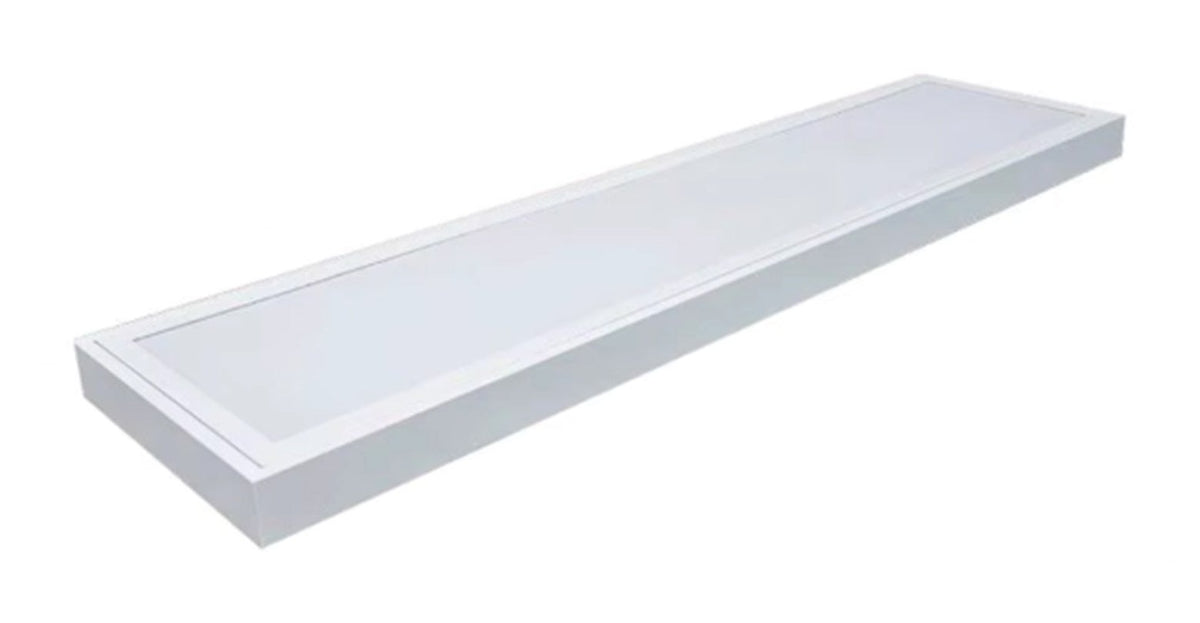

Surface Panel 50W, 300 x 1200, CCT

Surface Panel 50W, 300 x 1200, CCT

Surface mounted 300 x 1200 panel for ceilings without a grid, with a selectable colour temperature.

CodeLUZ-SU30120CCT
Spec sheet PDF
Light colour CCT selectable (3000K / 4000K / 6500K)
Power50 W 175-250V AC
Protection IP40 For dry indoor rooms, closed to small objects.
Colour rendering Ra 82 to 85 Meets the Ra 80 minimum for most indoor work.

Specifications

Light

Colour temperature
CCT selectable (3000K / 4000K / 6500K)
Colour rendering
Ra 82 to 85
Colour consistency
<6
Lifetime
50000 (L70)

Electrical

Power
50 W
Input
175-250V AC
Driver
Constant current, flicker free, not dimmable; replaceable by a professional
Power factor
0.9
Protection class
I

Build and installation

Size
1195 x 295 x 35 mm
Material
Aluminium frame, PP diffuser, PMMA lens
Finish
White
IP rating
IP40
Ambient temperature
-20 to 50 °C
Mounting
Surface
Emergency
Optional 3 hour emergency pack

About this product

A long, narrow panel that fixes straight onto a plain ceiling with no grid, for corridors and rows over desks. The driver can be replaced by an electrician, and one item covers warm, neutral and cool white.

Features

  • LED light source not replaceable

Applications

  • Offices and open plan areas
  • Classrooms
  • Clinics and waiting rooms
  • Shops
  • Corridors
