LUZ25 system

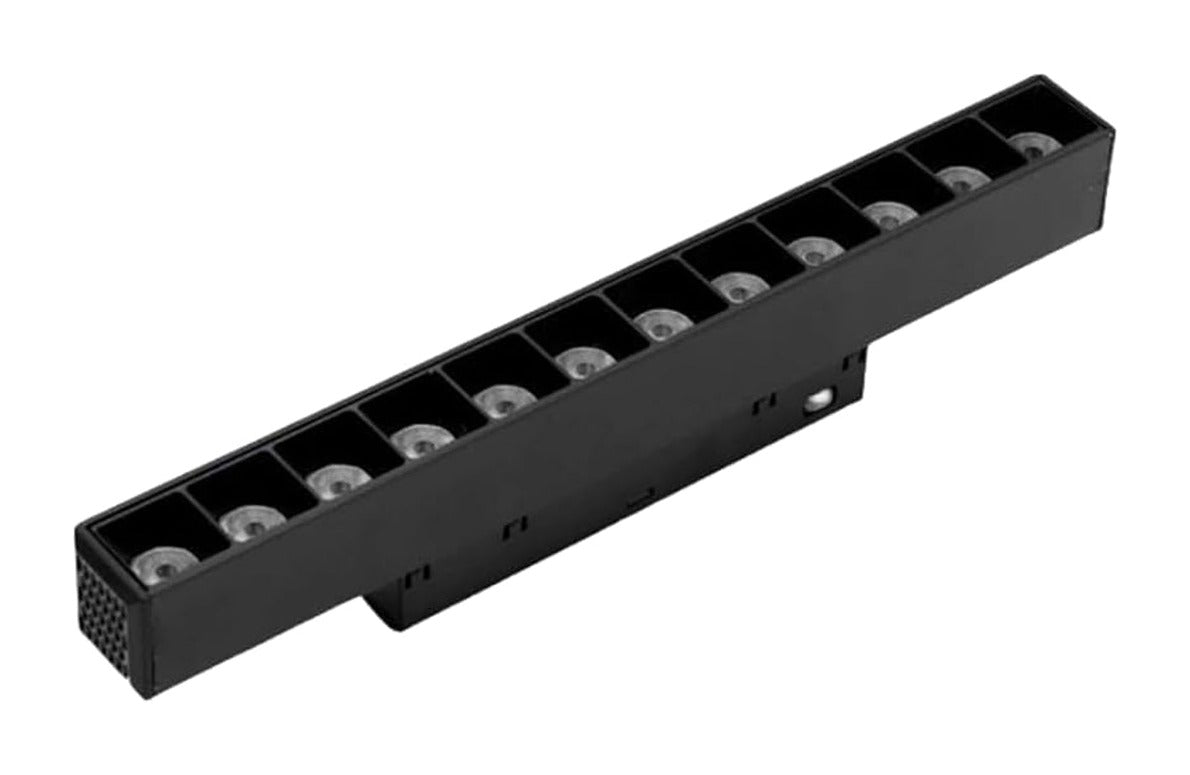

LUZ25 Magnetic Linear Grille Light 12W, CCT Shown: Black
LUZ25 magnetic system, 48V

Magnetic Linear Grille Light 12W, CCT

Magnetic linear light with a row of small anti glare lenses, for the LUZ25 track.

CodeLUZ-MD2012
Spec sheet PDF
Finish White
Light colour CCT selectable
Power12 W 48V DC
Light output996 lm 83 lm/W
Beam angle 38°
Protection IP20 For dry indoor rooms.
Colour rendering Ra 90 Accurate colours, for shops, galleries and hotels.
Dimming DimmableWith a dimmable 48V driver.

Specifications

Light

Luminous flux
996 lm
Colour temperature
CCT selectable
Colour rendering
Ra 90
Beam angle
38°

Electrical

Power
12 W
Voltage
48V DC
Dimming
Dimmable with a dimmable 48V driver

Build and installation

Size
273 x 34 mm
IP rating
IP20
LUZ25 magnetic system, 48V
LUZ25 magnetic system, 48V

Recessed and surface 48V tracks

Spots, linear lights and pendants hold to the track by magnet and move along it without tools. On track drivers or separate power supplies feed the track.

Explore the LUZ25 system

About this product

It clicks onto the LUZ25 track by magnet and slides along it, so lights can be moved or added without tools, and it runs from the track's driver. Its row of small lenses gives a line of focused light points with low glare.

Applications

  • Shops and showrooms
  • Offices and meeting rooms
  • Restaurants and bars
  • Living areas and kitchens

Works with

Tracks, drivers and connectors of the LUZ25 system.
