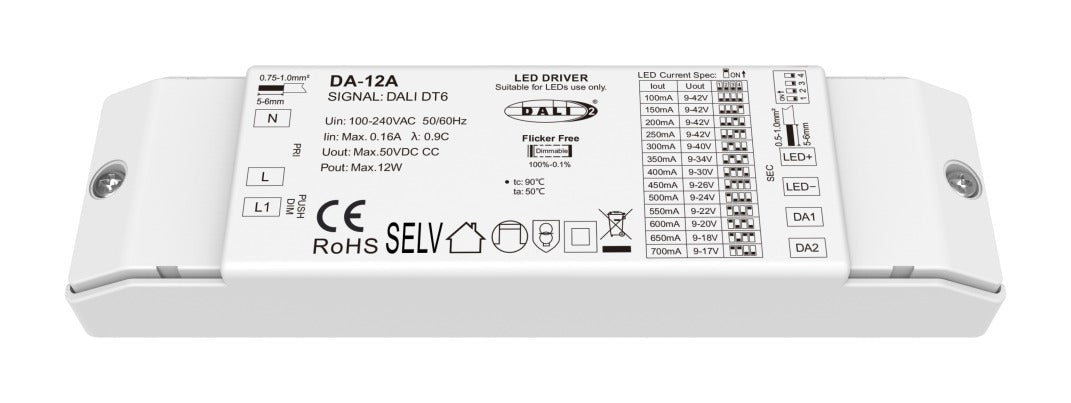

DALI Constant Current LED Driver 12W, 100 to 700mA

DALI Constant Current LED Driver 12W, 100 to 700mA

Mains driver with a constant current output for LED modules, downlights and spots, dimmed from a DALI system or a wall push switch.

CodeLUZ-DALI12
Spec sheet PDF
Control DALI and push switch DALI device type 6
Power12 W 100-240V AC
Output 100 to 700 mASet by DIP switch in 50 mA steps; 10 to 42V DC
Efficiency > 80% At 350 mA, full load
Dimming Dimmable0.1 to 100%, logarithmic curve, PWM 3600Hz.

Specifications

Electrical

Power
12 W
Input
100-240V AC, 50/60Hz
Output
Constant current, 100 to 700mA in 50mA steps by DIP switch; 10-42V DC (max 17V at 700mA)
Control
DALI (DT6) and push switch
Dimming
0.1 to 100%, logarithmic curve, PWM 3600Hz
Power factor
>0.9 (230V AC)
Protection class
II
Efficiency
>80% (350mA, full load)
Protections
Over load, short circuit, over temperature
Surge protection
1.5 kV

Build and installation

Size
140 x 38 x 20.5 mm
Ambient temperature
-20 to 50 °C

About this product

It is wired to the mains, to a DALI line or a momentary wall push switch, and to the LED module, whose current is set with the DIP switches before power is applied. On a DALI line it takes its address from the DALI controller, which can also set the level it starts at; with a push switch, a short press switches the light and a long press dims it.

Features

  • Push dimming returns to the last level after switching off, even after a power cut
  • Several drivers on one push switch can be synchronised with a long press
  • SELV output
  • For indoor use; outdoors only inside a waterproof enclosure

Applications

  • Constant current LED modules, downlights and spots
  • DALI lighting control systems
  • Momentary wall push switches
