LUZ25 system

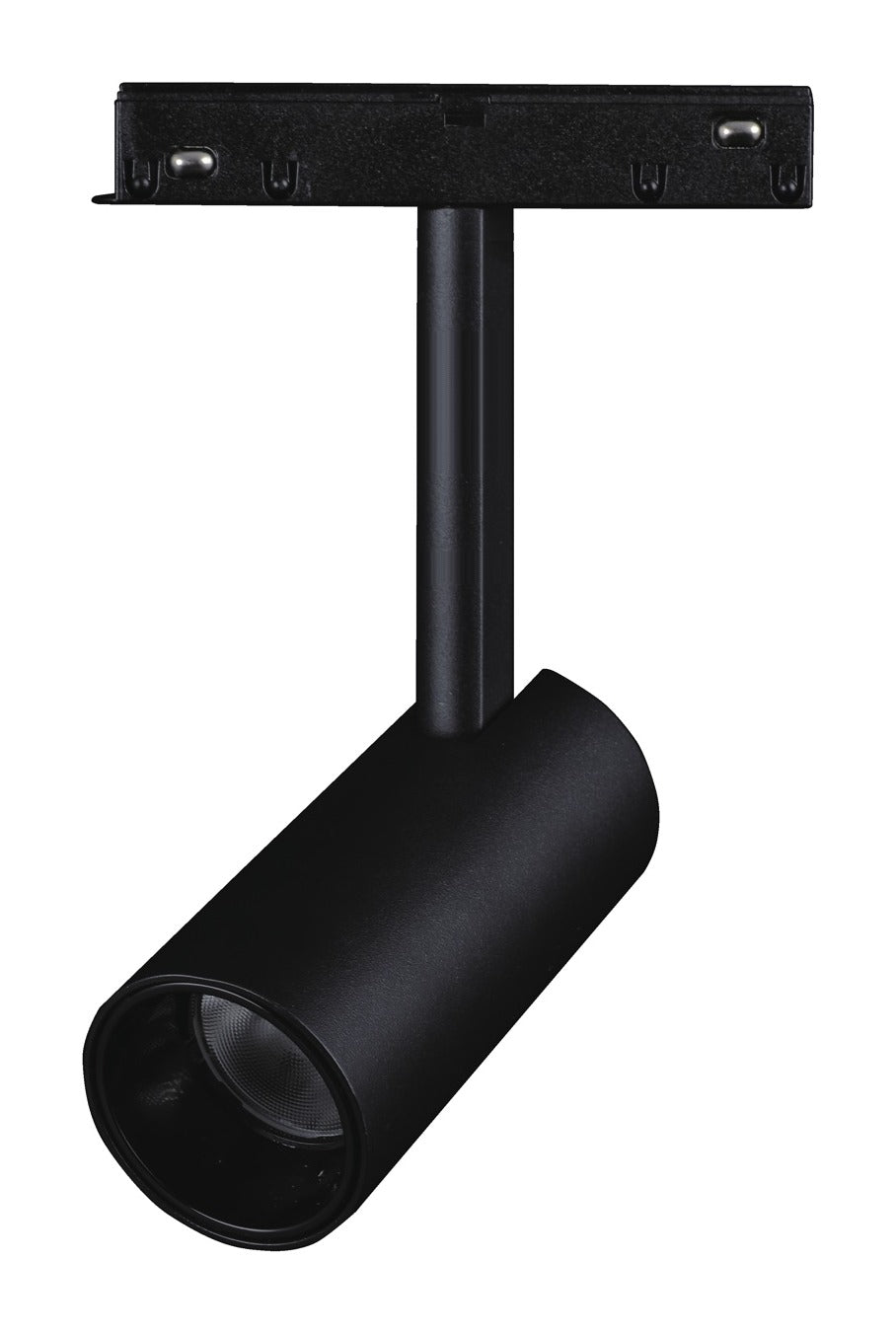

LUZ25 Magnetic Track Spot 10W, CCT
LUZ25 magnetic system, 48V

Magnetic Track Spot 10W, CCT

Magnetic track spot with a selectable colour temperature, for the LUZ25 track.

CodeLUZ-X6010-CCT+SMART
Spec sheet PDF
Finish Black
Light colour CCT selectable
Power10 W 48V DC
Light output1008 lm 101 lm/W
Beam angle 36°
Protection IP20 For dry indoor rooms.
Colour rendering Ra 90 Accurate colours, for shops, galleries and hotels.
Dimming DimmableWith a dimmable 48V driver.

Specifications

Light

Luminous flux
1008 lm
Colour temperature
CCT selectable
Colour rendering
Ra 90
Beam angle
36°

Electrical

Power
10 W
Voltage
48V DC
Dimming
Dimmable with a dimmable 48V driver

Build and installation

Size
D48 x 145 mm
Finish
Black or white
IP rating
IP20
LUZ25 magnetic system, 48V
LUZ25 magnetic system, 48V

Recessed and surface 48V tracks

Spots, linear lights and pendants hold to the track by magnet and move along it without tools. On track drivers or separate power supplies feed the track.

Explore the LUZ25 system

About this product

It clicks onto the LUZ25 track by magnet and slides along it, so lights can be moved or added without tools, and it runs from the track's driver. Its colour temperature is selectable, so one item suits warm and cool displays.

Applications

  • Shop displays
  • Galleries
  • Restaurants and bars
  • Living areas and kitchens

Works with

Tracks, drivers and connectors of the LUZ25 system.
