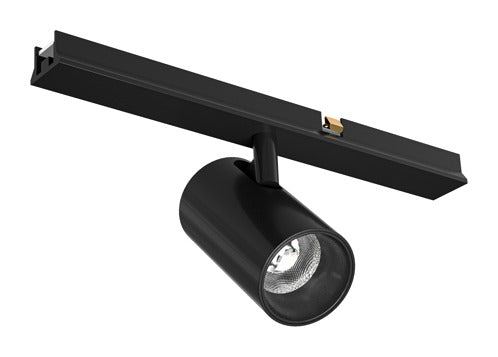

Magnetic Track Spot 5W
Magnetic spot with an adjustable head for the LUZ15 track.
CodeLUZ-RL1905
Spec sheet PDF
Light colour
3000K
Power5 W
48V DC
Light output305 lm
61 lm/W
Beam angle
29°
Protection
IP20
For dry indoor rooms.
Colour rendering
Ra 90+
Accurate colours, for shops, galleries and hotels.
Dimming
DimmableWith a dimmable 48V driver.
Specifications
Light
- Luminous flux
- 305 lm
- Colour temperature
- 3000K
- Colour rendering
- Ra 90+
- Beam angle
- 29°
Electrical
- Power
- 5 W
- Voltage
- 48V DC
- Dimming
- Dimmable with a dimmable 48V driver
- Protection class
- III
Build and installation
- Size
- L150, head D32 x 58 mm
- Finish
- Black
- IP rating
- IP20
LUZ15 mini magnetic system, 48V
A mini 48V track
Recessed in plasterboard or 13.5 mm high on the surface, with spots, grille, linear and globe lights, and 150W drivers, one of them 0-10V dimmable.
Explore the LUZ15 systemAbout this product
It clicks onto the LUZ15 mini track by magnet and slides along it, so lights can be moved or added without tools, and it runs from the track's driver. Its small head turns to aim a narrow beam at a display or a picture.
Applications
- Shop displays
- Galleries
- Restaurants and bars
- Living areas and kitchens
Works with
Tracks, drivers and connectors of the LUZ15 system.
