Constant Voltage Power Supply 100W, 12V, IP20

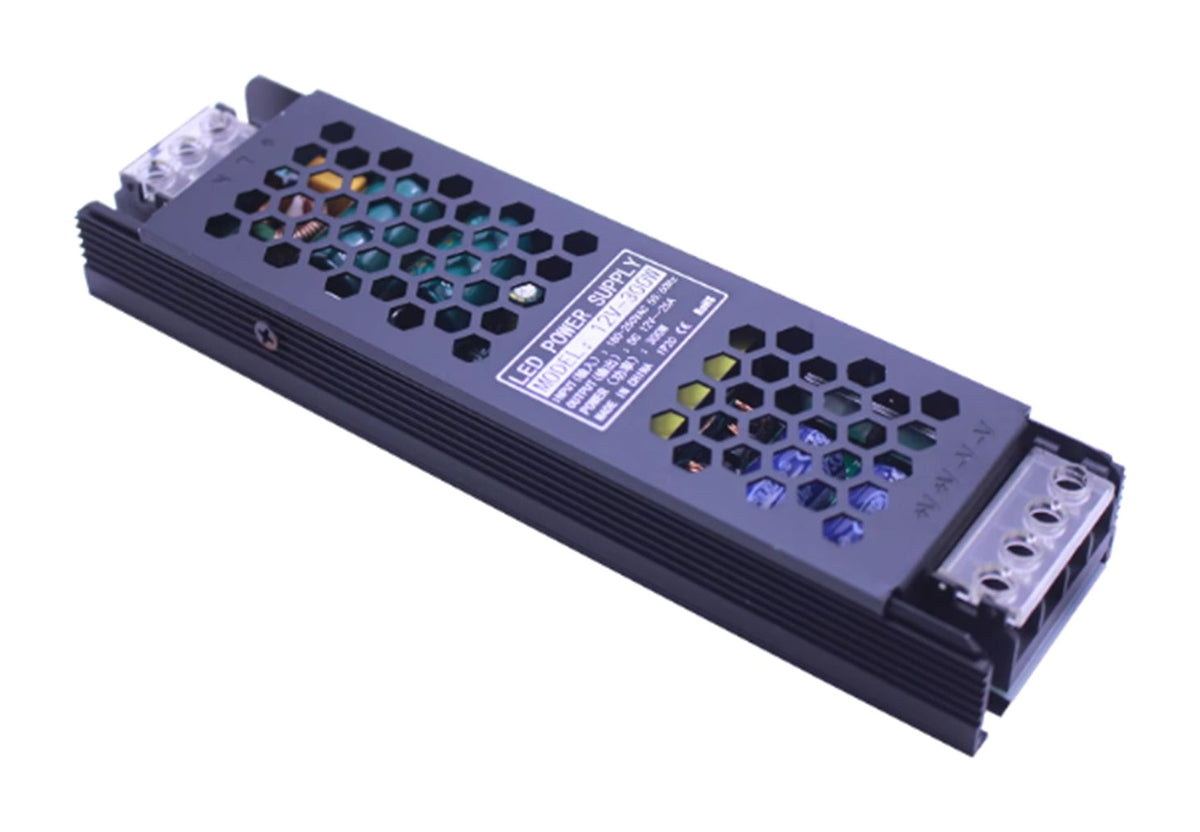

Constant Voltage Power Supply 100W, 12V, IP20

Constant voltage power supply for LED strip and controllers, for dry indoor installation.

CodeLUZ-H10012
Spec sheet PDF
Power100 W 180-264V AC
Output 12V DC Constant voltage, up to 8.3 A
Efficiency ≥ 86% At 230V, full load
Protection IP20 For dry indoor rooms.

Specifications

Electrical

Power
100 W
Input
180-264V AC, 50-60Hz
Output
12V DC constant voltage, max 8.3A
Efficiency
≥86% (at 230V, full load)
Protections
Over current, over voltage, over power

Build and installation

IP rating
IP20
Cooling
Natural convection

About this product

It converts mains power to the constant low voltage that LED strip and its controllers need. Install it in a dry, ventilated place such as a ceiling void or a cabinet, close to the strip, and choose it with some margin over the total strip load.

Applications

  • 12V LED strip
  • 12V controllers and repeaters
  • Ceilings, coves and furniture (dry, ventilated)
