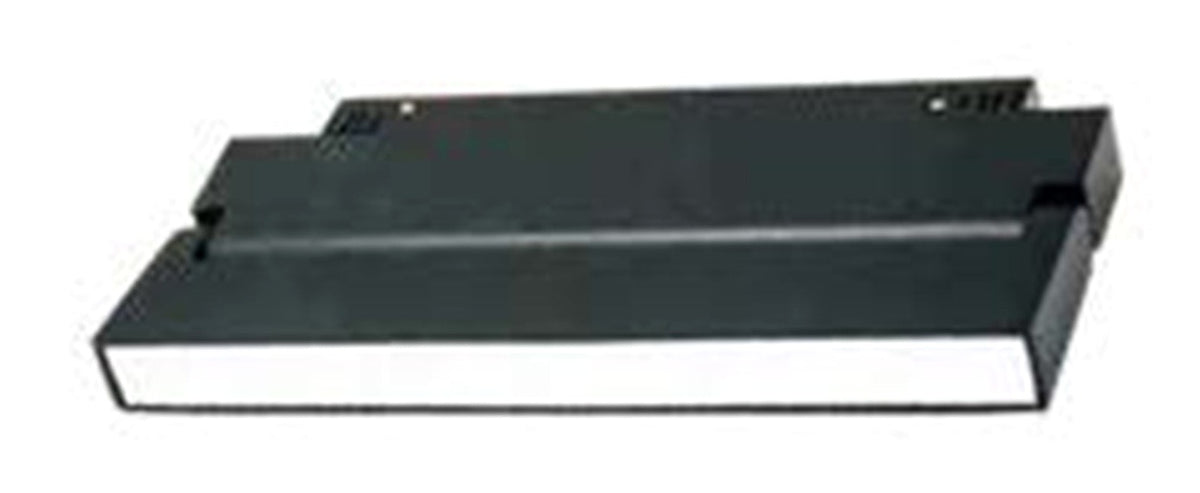

Magnetic Foldable Linear Light 6W, CCT
Foldable magnetic linear light with an opal diffuser that tilts on the LUZ25 track.
CodeLUZ-FL206
Spec sheet PDF
Finish White
Light colour
CCT selectable
Power6 W
48V DC
Light output580 lm
97 lm/W
Protection
IP20
For dry indoor rooms.
Colour rendering
Ra 90
Accurate colours, for shops, galleries and hotels.
Dimming
DimmableWith a dimmable 48V driver.
Specifications
Light
- Luminous flux
- 580 lm
- Colour temperature
- CCT selectable
- Colour rendering
- Ra 90
Electrical
- Power
- 6 W
- Voltage
- 48V DC
- Dimming
- Dimmable with a dimmable 48V driver
Build and installation
- Size
- 110 x 22 mm
- IP rating
- IP20
LUZ25 magnetic system, 48V
Recessed and surface 48V tracks
Spots, linear lights and pendants hold to the track by magnet and move along it without tools. On track drivers or separate power supplies feed the track.
Explore the LUZ25 systemAbout this product
It clicks onto the LUZ25 track by magnet and folds down from it, so its light can be angled onto a wall, a shelf or a display. Its opal diffuser gives a soft wash rather than points of light.
Applications
- Shops and showrooms
- Offices and meeting rooms
- Restaurants and bars
- Living areas and kitchens
Works with
Tracks, drivers and connectors of the LUZ25 system.
