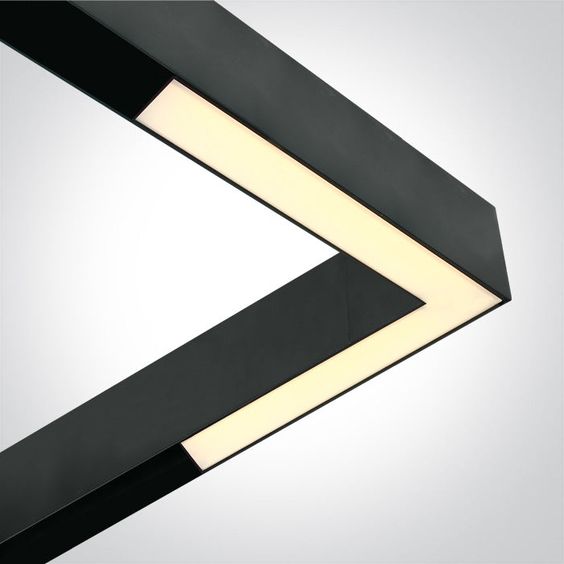

LUZ25 Magnetic Linear Corner Light 20W, CCT, Black
LUZ25 magnetic system, 48V

Magnetic Linear Corner Light 20W, CCT, Black

Magnetic linear light shaped as a right angle, for the corners of a LUZ25 track layout.

CodeLUZ-CO20
Spec sheet PDF
Light colour CCT selectable
Power20 W 48V DC
Light output1800 lm 90 lm/W
Beam angle 100°
Protection IP20 For dry indoor rooms.
Colour rendering Ra 90 Accurate colours, for shops, galleries and hotels.
Dimming DimmableWith a dimmable 48V driver.

Specifications

Light

Luminous flux
1800 lm
Colour temperature
CCT selectable
Colour rendering
Ra 90
Beam angle
100°

Electrical

Power
20 W
Voltage
48V DC
Dimming
Dimmable with a dimmable 48V driver

Build and installation

Size
242 x 242 x 24.5 mm
Finish
Black
IP rating
IP20
LUZ25 magnetic system, 48V
LUZ25 magnetic system, 48V

Recessed and surface 48V tracks

Spots, linear lights and pendants hold to the track by magnet and move along it without tools. On track drivers or separate power supplies feed the track.

Explore the LUZ25 system

About this product

It turns a corner of the LUZ25 layout into a lit right angle, so the line of light continues round the room; it clicks on by magnet. Black, with a selectable colour temperature.

Applications

  • Shops and showrooms
  • Offices and meeting rooms
  • Restaurants and bars
  • Living areas and kitchens

Works with

Tracks, drivers and connectors of the LUZ25 system.
