Recessed spots
Recessed Linear Spot 30W, CCT

Recessed Linear Spot 30W, CCT

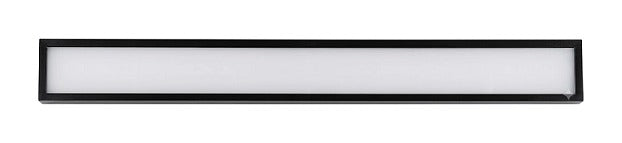

Long recessed linear light with a selectable colour temperature, set into a narrow slot in the ceiling.

CodeLUZ-CF0230-B
Spec sheet PDF
Finish Black
Light colour CCT selectable (3 steps)
Power30 W 220-240V AC
Light output2400 lm 80 lm/W
Beam angle 38°
Protection IP20 For dry indoor rooms.
Cut out 402 x 35 mm Hole size in the ceiling.
Colour rendering Ra 90 Accurate colours, for shops, galleries and hotels.

Specifications

Light

Luminous flux
2400 lm
Colour temperature
CCT selectable (3 steps)
Colour rendering
Ra 90
Beam angle
38°

Electrical

Power
30 W
Input
220-240V AC
Current
700 mA

Build and installation

Size
409 x 41 x 32 mm
Cut out
402 x 35 mm
Finish
Matt black or matt white
IP rating
IP20
Mounting
Recessed

About this product

It sits in a long narrow slot in the ceiling, so from below it reads as a single line of light. The trim comes in matt black or matt white, and set in rows they draw long lines across a ceiling.

Applications

  • Shops and showrooms
  • Galleries
  • Hotel lobbies and corridors
  • Offices and meeting rooms

Works with

Tracks, drivers and connectors of the Altagama system.
