Recessed downlights

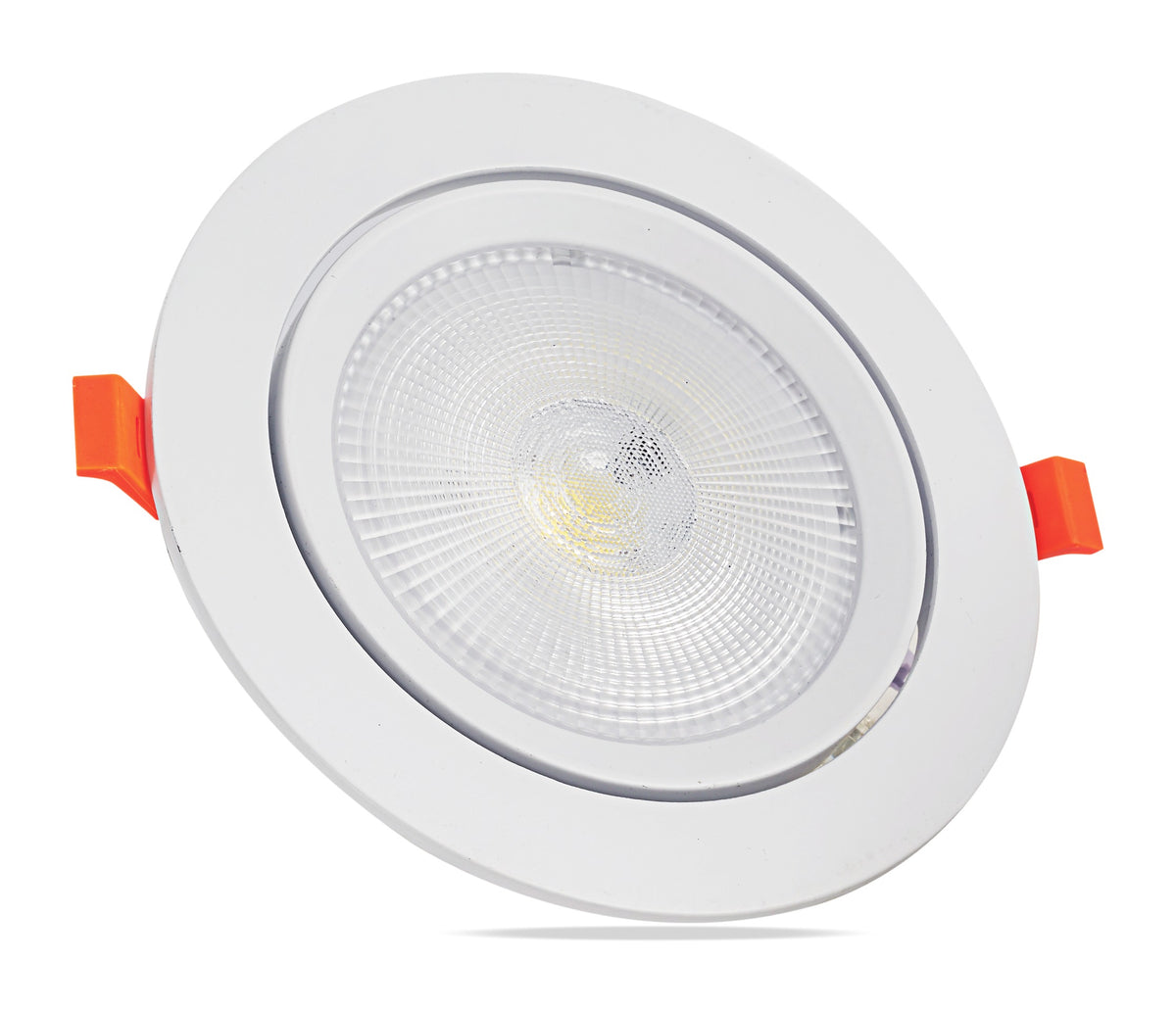

Recessed Adjustable COB Downlight 30W

Recessed Adjustable COB Downlight 30W

Large recessed COB downlight with a tilting head, for directed light from the ceiling.

CodeLUZ-CB30
Spec sheet PDF
CCT 6500K
Light colour 3000K or 6500K
Power30 W 85-265V AC
Light output2750 lm 92 lm/W
Beam angle 40°
Protection IP20 For dry indoor rooms.
Cut out D190 mm Hole size in the ceiling.
Colour rendering Ra 80 Meets the Ra 80 minimum for most indoor work.
Dimming Not dimmable

Specifications

Light

Luminous flux
2750 lm
Colour temperature
3000K or 6500K
Colour rendering
Ra 80
Beam angle
40°

Electrical

Power
30 W
Input
85-265V AC
Dimming
Not dimmable
Driver
Included
Protection class
II

Build and installation

Size
D225 x 38 mm
Cut out
D190 mm
Material
Aluminium and PC
Finish
White
IP rating
IP20
Ambient temperature
-20 to 50 °C
Mounting
Recessed, tilting head

About this product

It fits a large round cut out and holds with spring clips, and its driver is included. The inner ring tilts, so the beam can be aimed at a display, a wall or a counter once the light is in place. A single COB chip gives one strong, defined beam.

Features

  • Powder coated finish

Applications

  • Shops and showrooms
  • Hotel lobbies and corridors
  • Restaurants
  • Offices and meeting rooms
  • Reception areas
