Surface Aluminium Profile 17 x 7, 1 m

Surface Aluminium Profile 17 x 7, 1 m

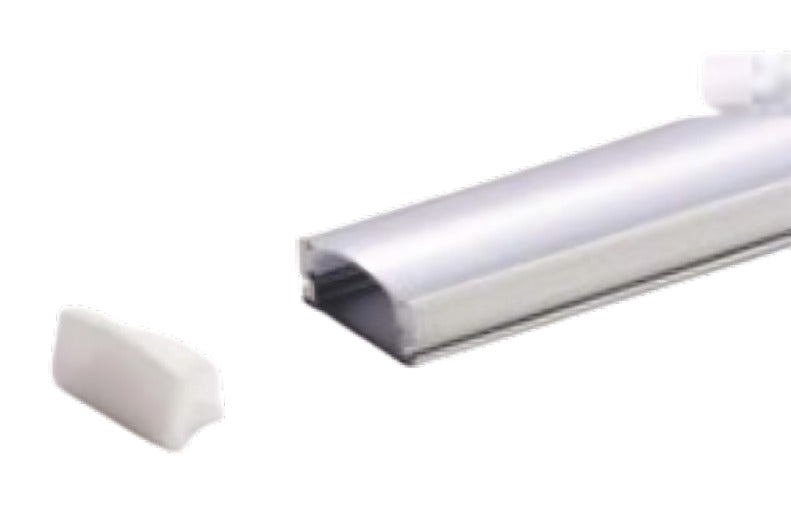

Slim surface aluminium profile for LED strip with an opal cover.

CodeSAP-204
Spec sheet PDF
Finish Silver
Length 1 m
Section 17 x 7 mm For strip up to 12 mm wide and 18 W/m
Mounting Surface With clips

Specifications

Build and installation

Size
17 x 7 mm
Length
1 m
Material
AL6063-T5 aluminium, opal PC cover
Finish
Anodised aluminium or black
Mounting
Surface, with clips
Max power per metre
18 W/m
Max PCB width
12 mm

About this product

It is fixed to the surface with its clips, the strip is laid in the channel and the opal cover presses in over it, turning the LEDs into an even line of light with no dark spots. In anodised aluminium or black.

Features

  • Supplied with its cover, end caps and mounting clips
  • Constant voltage strip recommended

Applications

  • Furniture and shelves
  • Under cabinets
  • Shop fittings and displays
  • Bars and restaurants
